Description
8 inputs, 8 transistor outputs
16 inputs
16 transistor outputs
8 inputs, 8 transistor outputs
16 inputs
16 transistor outputs
Only logged in customers who have purchased this product may leave a review.
|
Model |
Channels |
Functionality |
Description |
|
LX6V-0808EXYT |
16 |
8 inputs, 8 transistor outputs |
8 channels switch input and 8 channels transistor output. Input supports NPN or PNP. 8 Output supports NPN. |
|
LX6V-16EX |
16 |
16 inputs |
16-channel switch input; Input supports NPN or PNP. |
|

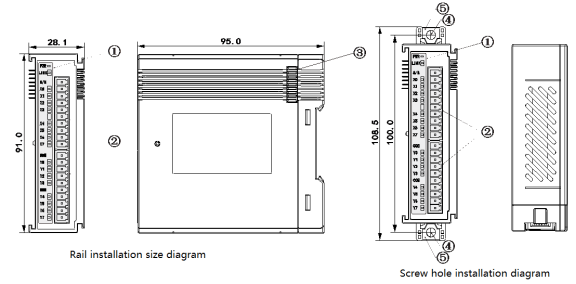

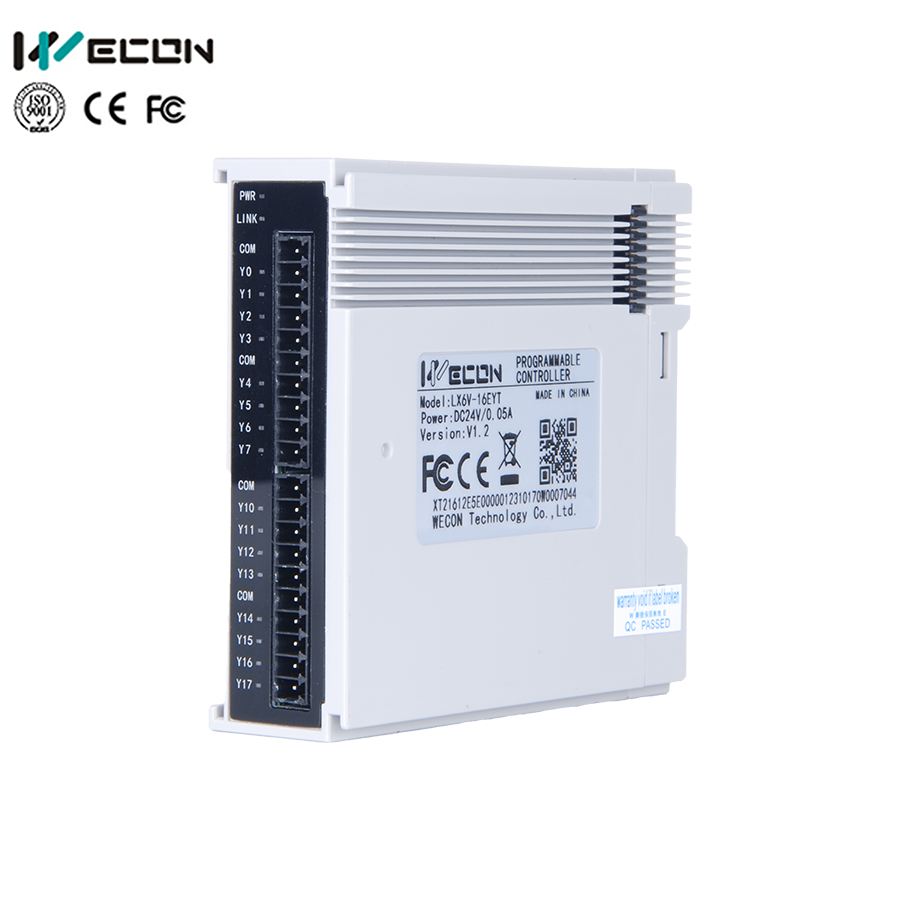

LX6V-16EYT |
16 |
16 transistor outputs |
16-channel transistor output; Output supports NPN. |
Specification
|
Item |
Digital Input |
|
|
Input Circuit Composition |
|
The figure shows NPN connection. If S/S is connected to 24V negative electrode and X is connected to positive electrode, it is PNP connection. |
|
Input Signal Voltage |
DC±24V ±10% |
|
|
Input Signal Current |
7mA/DC24V (The input current when inputting standard 24V.) |
|
|
Input ON Current |
Above 3.5 mA |
|
|
Input OFF Current |
Below 1.5 mA |
|
|
Input Response Time |
About 0.2ms |
|
|
Input Signal Form |
Contact input: supports NPN and PNP input |
|
|
Circuit Insulation |
Transformer isolation |
|
|
Action Display |
When ON is input, LED lights is on. |
|
|
Item |
Transistor Output |
|
|
Output Circuit Composition |
|
|
|
External Power Supply |
DC5~30V |
|
|
Circuit Insulation |
Transformer isolation |
|
|
Action Display |
LED lights is on when running |
|
|
Maximum load |
Resistance Load |
0.4 A/1 point |
|
Inductive Load |
9.6W/DC24V |
|
|
Lamp Load |
0.9 W/DC24V |
|
|
Open Circuit Leakage Current |
0.1 mA / DC30V |
|
|
Minimum Load |
－ |
|
|
Response Time |
OFF → ON |
About 0.2ms |
|
ON→OFF |
About 0.2ms |
|
