Description

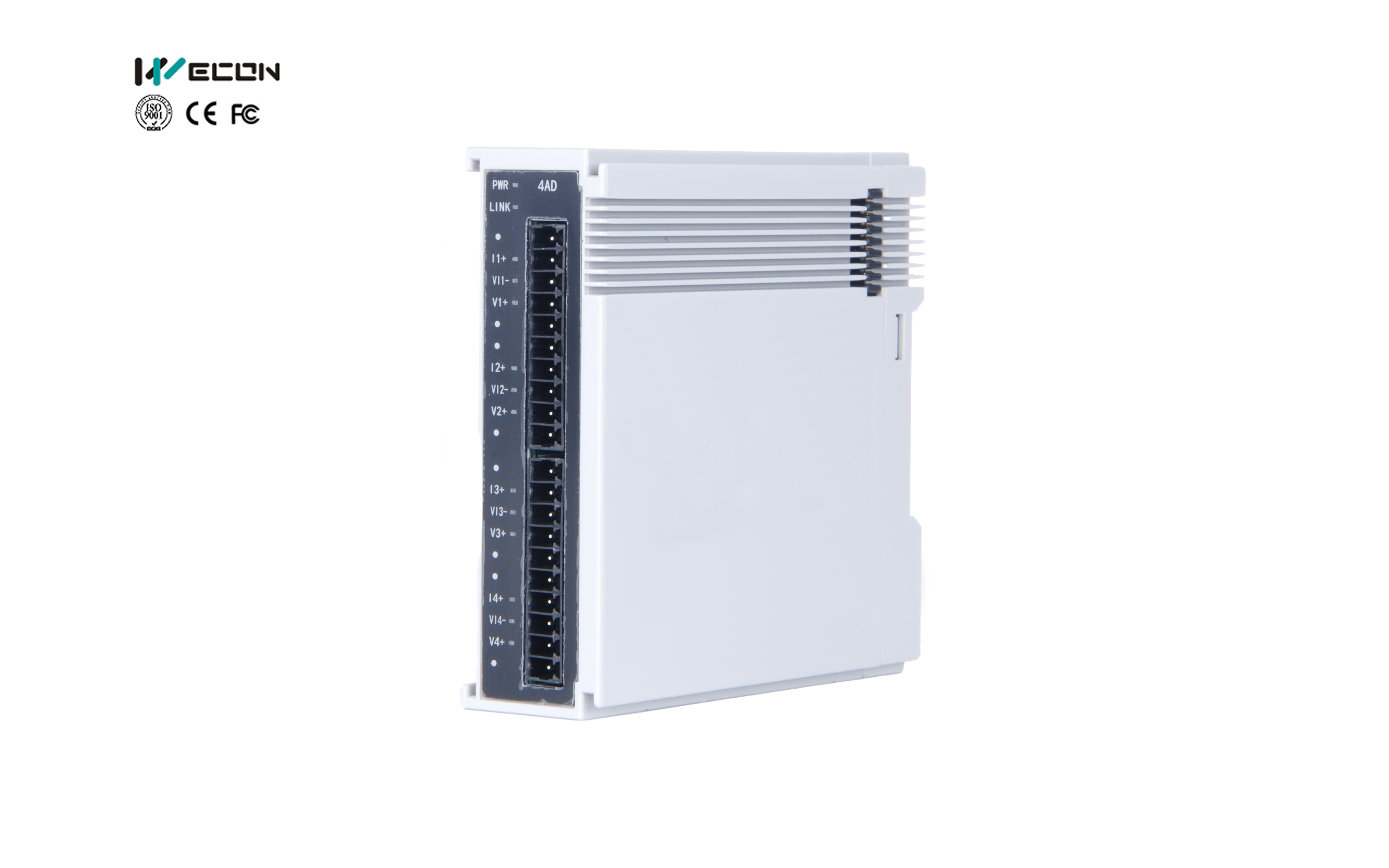

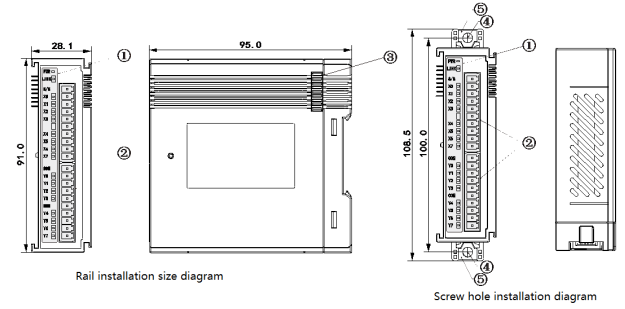

4-channel analog input/output module.
4-channel analog input/output module.
Only logged in customers who have purchased this product may leave a review.
|
Model |
Channels |
Functionality |
Description |
|
LX6V-4AD |
4 |
4 inputs |
4-channel analog input module. |
Specification
|
Item |
Digital Input |
|
|
Input Circuit Composition |
|
The figure shows NPN connection. If S/S is connected to 24V negative electrode and X is connected to positive electrode, it is PNP connection. |
|
Input Signal Voltage |
DC±24V ±10% |
|
|
Input Signal Current |
7mA/DC24V (The input current when inputting standard 24V.) |
|
|
Input ON Current |
Above 3.5mA |
|
|
Input OFF Current |
Below 1.5mA |
|
|
Input Response Time |
About 0.2ms |
|
|
Input Signal Form |
Contact input: supports NPN and PNP input |
|
|
Circuit Insulation |
Transformer isolation |
|
|
Action Display |
When ON is input, LED lights is on. |
|
|
Item |
Analog Output |
|
Output Circuit Composition |
|
|
Output Mode |
Voltage/current |
|
Output Channel |
4 |
|
Resolution |
1/20,000, hardware can meet 16bit resolution |
|
Voltage Output Range |
-10V-10V |
|
Voltage Output Load |
≥2KΩ |
|
Voltage Output Diagnosis |
Support non-zero voltage output short-circuit detection with about 14mA overcurrent protection |
|
Current Output Range |
020mA, 4-20mA |
|
Current Output Load |
≤ 500Ω |
|
Current output Diagnosis |
Support non-zero current output open circuit detection |
|
Comprehensive Precision |
±1% |
|
Conversion Speed |
Approximately 1ms |
|
Power Supply |
Interface power supply, DC24V±10%, 125mA |
