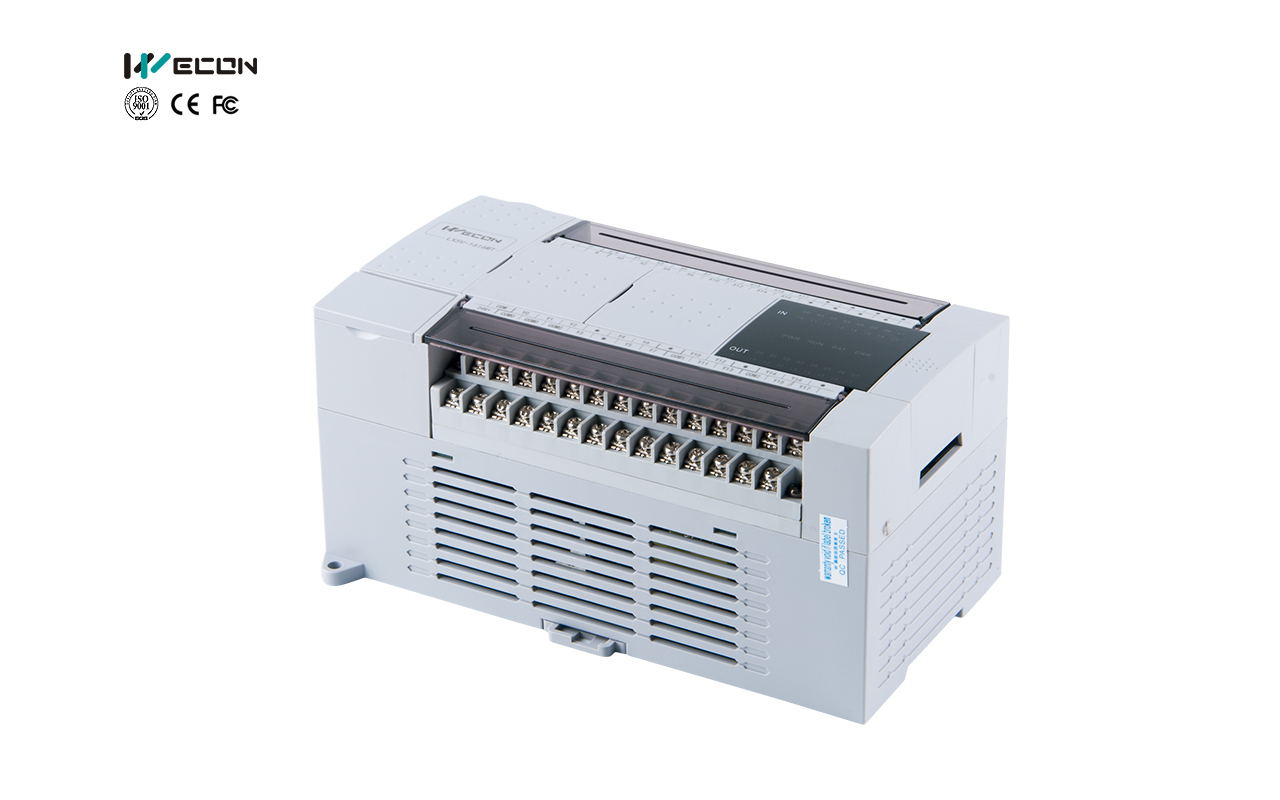

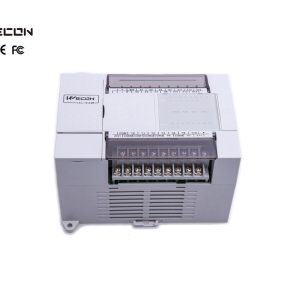

WeconPLC-LX5V 1616MT/2416MT PLC

Description

This PLC supports a large program capacity of 48,000 steps, making it suitable for complex automation processes. It features a maximum baud rate of 921600, enabling fast and stable communication for real-time data exchange. The 8-channel external interrupt with rising and falling edge detection enhances responsiveness and control accuracy.

The LX5V 1616MT/2416MT PLC includes a 100μs high-speed timer interrupt and supports up to 100 high-speed counting interrupts, ensuring precise event handling and synchronization. It also supports advanced motion control functions, including E-CAM and electronic gear, making it ideal for applications requiring smooth and coordinated motion control.

To optimize system performance and stability, it features efficient and reliable PID and CCPID auto-tuning, delivering accurate process control. Additionally, it supports LX3V series I/O modules and analog modules, providing flexible expansion options. It is also compatible with LX3V series BD modules, except for communication BD modules.

With its fast processing, large memory capacity, and advanced motion control capabilities, the LX5V 1616MT/2416MT PLC is the perfect solution for high-speed, high-precision industrial automation applications.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Technical Data

LX5V Model

I/O

Output Type

Pulse

Counter

E-CAM

Pulse Output

RS485

BD Board

Module

Power Supply

Ethernet

LX5V-1616MT-A(D/AN/DN)

16/16

Transistor

YES

AC(DC)

Optional

LX5V-2416MT-A(D/AN/DN)

24/16

Transistor

YES

AC(DC)

Optional

GENERAL

Item	LX5V Series
Running Mode	Round Scan/ Interrupt
Programming	Instruction List/ Ladder
Total Instructions	Basic Instructions: 29 / Application Instructions: 170
Execute time	Basic Instructions: 0.01-0.03us
System Storage	512KB
Download/ Monitoring	Serial Programming Cable (Serial port) / Micro USB
High Speed Pulse Output	Transistor: 8 channels / 200K
High Speed Counter Interrupt	100 channels
External Input Interrupt	X0-X7 supports both rising and falling edges
Timer Interrupt	100 Channels, Interruption time (min): 0.1ms
High Speed Input Single	8 Channels 150KHz
High Speed Input AB Phase	8 channel 100KHz, frequency modes:1/2/4 times
Holding Addresses	Adjusted by software
Storage	FLASH
Filter	For all X input terminals
Serial Port	COM1: RS422 or RS485 COM2: RS485
Temperature	Working Temperature: 0 ~ 55℃ / Storage Temperature: 0 ~ 70℃
Humidity	35~ 85%RH (Without condensation)
Shock Resistance	JIS C 0040 Standard
Influence Immunity	Meet the IEC61000-4-4 and GB/T 17626.4 standard: Noise voltage amplitude 1KVP-P, pulse width 10us, period 0.3 s, edge time 5ns, duration 1min.
USB Supply	N/A

POWER SUPPLY

Item	AC	DC
Power Supply	AC 85~265V 50 ~ 60Hz	DC 24V±10%
Power Outage Time	10ms	10ms
Power Fuse	250V 3.15A	250V 3.15A
Rush Current	<15A 5ms / AC 100V; <30A 5ms / AC 200V	<15A 1ms / DC 24V
Power Consumption	<60W	<30W
Power Output	DC 24V 700mA	<30w(Not include the external power supply for modules)

OUTPUT

Item		Relay	Transistor
Output Mode		--	NPN
Input Power Supply		DC 24V	DC 24V
Output Circuit		<AC 250V or <DC 30	DC 5~30V
COM Port Current		--	<0.1mA (DC 30V)
Insulation		Mechanistic	Optical Coupling
Leak current		--	0.1mA / DC 30V
Min. Load		--	DC5V 2mA
Max. Load	Resistive	2A point 8A COM port	0.5A point 0.8A COM port 0.3A HSPO point
	Inductive	80VA	12W/DC24V 7.2W HSPO point
	General	100W	0.9W/DC 24V
Response Time		<10ms	<0.2ms (Pulse output terminal: <5us)
