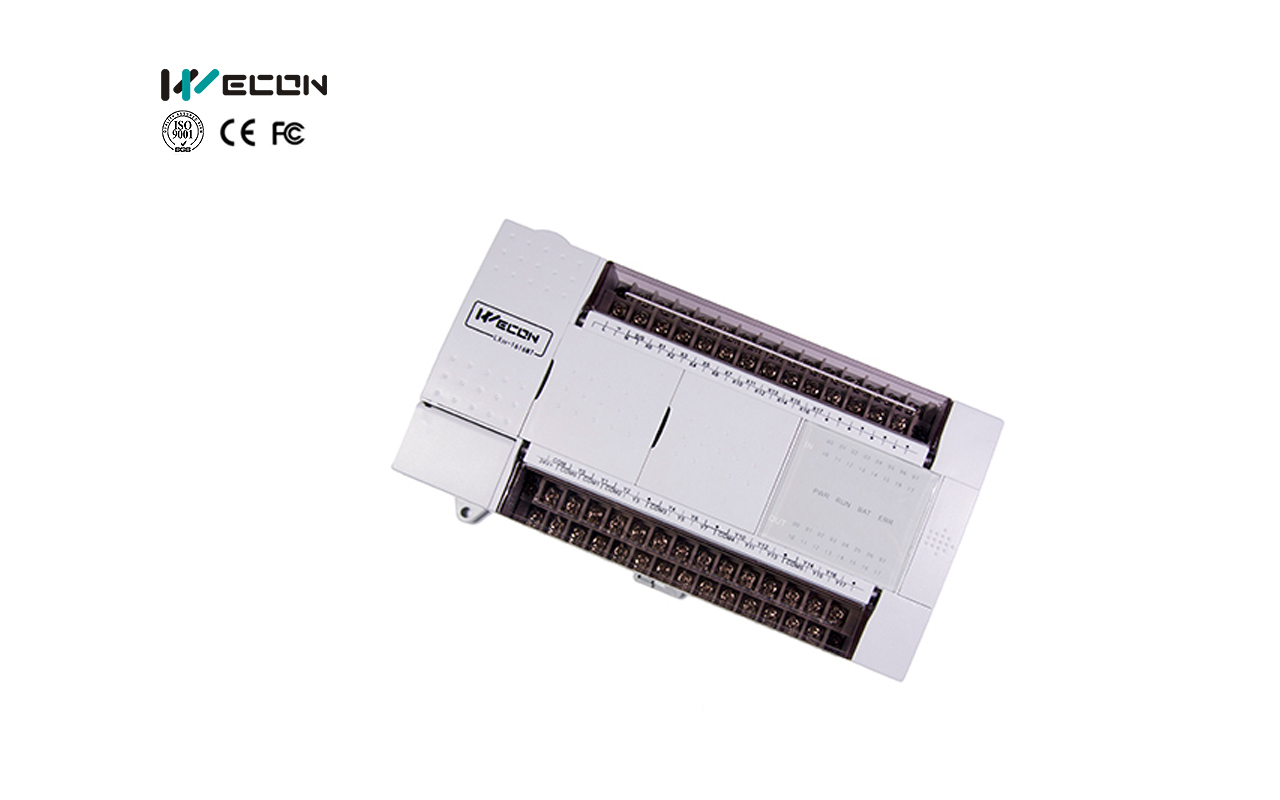

WeconPLC-LX5S 1616M/2416M

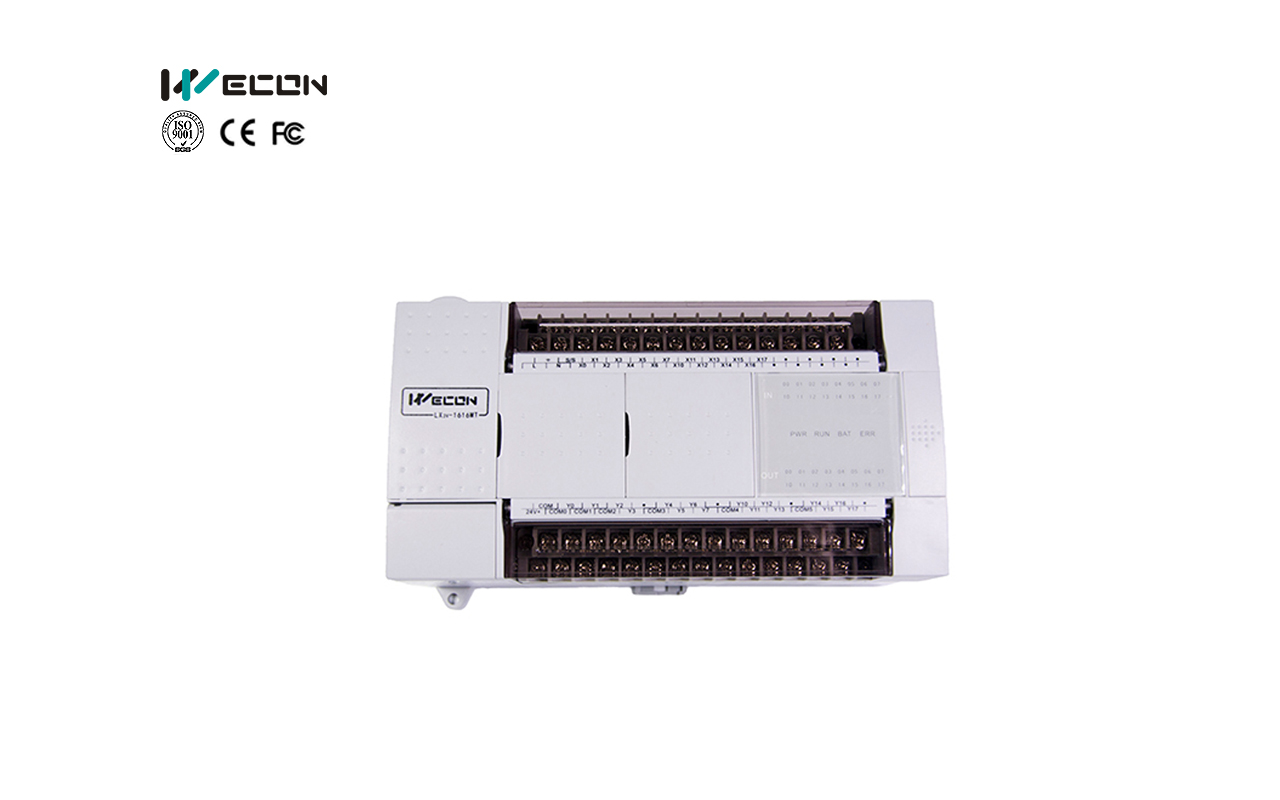

WeconPLC-LX5S 1616M/2416M - Image 2

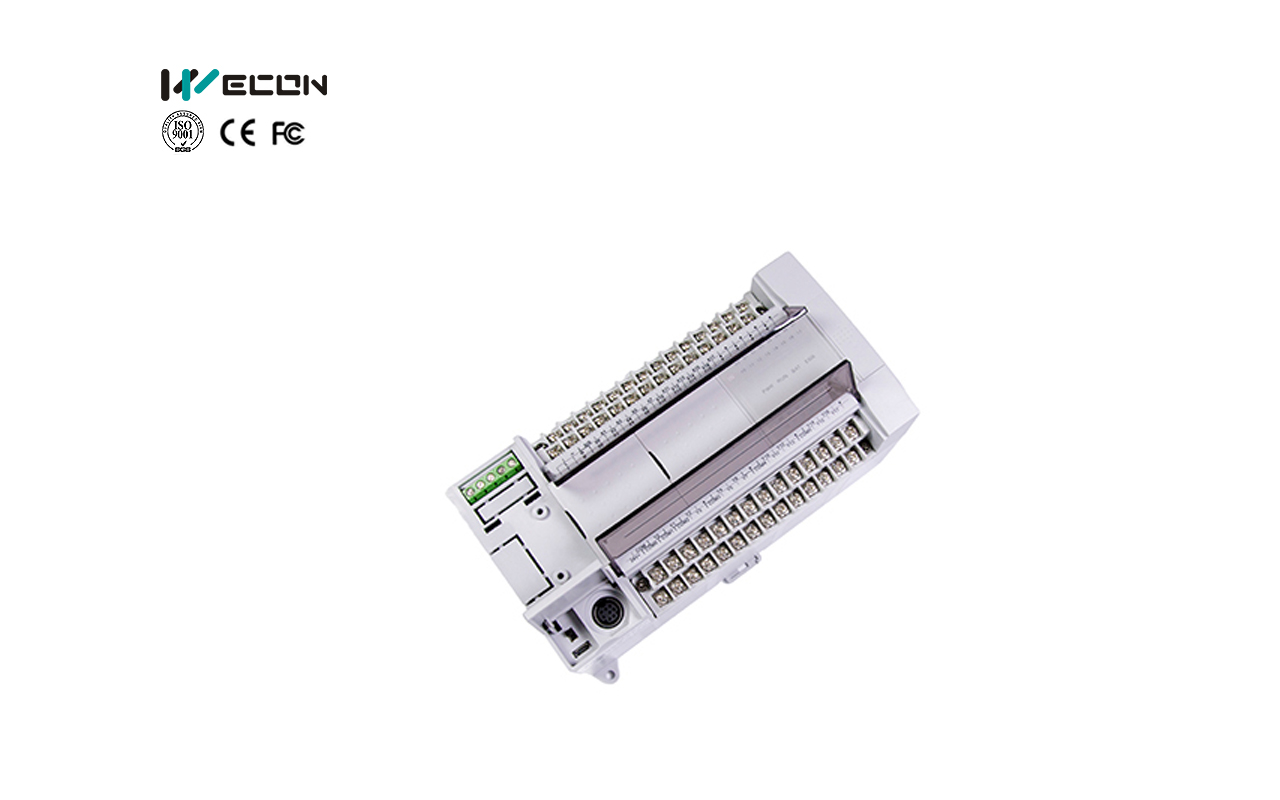

WeconPLC-LX5S 1616M/2416M - Image 3

WeconPLC-LX5S 1616M/2416M

The LX5S 1616M/2416M PLC is a high-performance, cost-effective programmable logic controller designed for fast, precise, and reliable automation control. With advanced motion control features, high-speed processing, and seamless expandability, it is an ideal solution for modern industrial automation.

This PLC supports real-time frequency and position modification, ensuring smooth and adaptive pulse operation. It offers an ultra-fast baud rate of 921600, a 100μs high-speed timer interrupt, and up to 100 high-speed counter interrupts, enabling precise motion synchronization and fast response times.

Add to Cart

Description

Equipped with E-CAM and electronic gear support, the LX5S 1616M/2416M delivers synchronized motion control, making it suitable for robotics, CNC machinery, and complex automation systems. Its efficient PID and CCPID self-tuning ensures stable and optimized process control for a variety of industrial applications.

For enhanced connectivity and scalability, it is compatible with LX3V series expansion modules and BD modules, allowing for seamless integration into existing automation systems. The USB power supply offers flexibility, while the LX5V software provides a user-friendly interface with structured programming and detailed parameter settings for easy configuration and operation.

With an execution speed of 0.03μs to 0.08μs, the LX5S 1616M/2416M PLC runs 6 to 20 times faster than LX3V PLCs, ensuring high-speed and high-precision automation performance. It supports external high-speed pulse input, acceleration/deceleration control, and rising/falling edge interrupts, making it an efficient solution for demanding industrial control applications.

Widely used in manufacturing, robotics, motion control, and automation equipment, the LX5S 1616M/2416M PLC offers exceptional speed, precision, and reliability, making it an excellent choice for modern industrial automation systems.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Technical Data

LX5S Model

I/O

Output Type

Pulse

Counter

E-CAM

Pulse Output

RS485

BD Board

Module

Power Supply

Ethernet

LX5S-1616MT-A(D/AN/DN)

16/16

Transistor

6

YES

2

2

2

YES

AC(DC)

Optional

LX5S-1616MR-A(D/AN/DN)

16/16

Relay

6

N/A

0

2

2

YES

AC(DC)

Optional

LX5S-1616MR2H-A(D/AN/DN)

16/16

Mix

6

YES

2

2

2

YES

AC(DC)

Optional

LX5S-1616MT4H-A(D/AN/DN)

16/16

Transistor

6

YES

4

2

2

YES

AC(DC)

Optional

LX5S-2416MT-A(D/AN/DN)

24/16

Transistor

6

YES

2

2

2

YES

AC(DC)

Optional

LX5S-2416MR-A(D/AN/DN)

24/16

Relay

6

N/A

0

2

2

YES

AC(DC)

Optional

LX5S-2416MR2H-A(D/AN/DN)

24/16

Mix

6

YES

2

2



2

YES

AC(DC)

Optional

LX5S-2416MT4H-A(D/AN/DN)

24/16

Transistor

6

YES

4

2

2

YES

AC(DC)

Optional

GENERAL

Item

LX5S Series

Running Mode

Round Scan / Interrupt / Event

Programming

Instruction list/ladder diagram

Total Instructions

Basic Instructions: 29 / Application Instructions: 170

Execute time

Basic Instructions: 0.03-0.08us

System Storage

512KB

Download/ Monitoring

Programming cable (serial type) / Micro USB

High Speed Pulse Output

Transistor type; 2 channels/200KHz

External  Input Interrupt

X0-X5 supports both rising and falling edges

Timer Interrupt

100 channels, support 0.1ms interrupt

High Speed Input Single

6 channel 150K Hz;

High Speed Input AB Phase

3 channel 100K Hz, supports 2 or 4 frequency times;



Holding Addresses

Adjusted by software

Storage

FLASH

Filter

For all X input terminals

Serial Port

COM1（RS422 / RS485),

COM2（RS485）

Temperature

Working Temperature: 0 ~ 55℃ / Storage Temperature: 0 ~ 70℃

Humidity

35~ 85%RH (Without condensation)

Shock Resistance

JIS C 0040 Standard

Influence Immunity

Meet the IEC61000-4-4 and GB/T 17626.4 standard:

Noise voltage amplitude 1KVP-P, pulse width 10us, period 0.3 s, edge time 5ns, duration 1min.

USB Supply

YES

POWER SUPPLY

Item

AC

DC

Power Supply

AC 85~265V 50 ~ 60Hz

DC 24V±10%

Power Outage Time

10ms

10ms

Power Fuse

250V 3.15A

250V 3.15A

Rush Current

<15A 5ms / AC 100V; <30A 5ms / AC 200V

<15A 1ms / DC 24V

Power Consumption

<60W

<30W

Power Output

DC 24V 700mA

<30w(Not include the external power supply for modules)



OUTPUT

Item

Relay

Transistor

Output Mode

—

NPN

Input Power Supply

DC 24V

DC 24V

Output Circuit

<AC 250V or <DC 30

DC 5~30V

COM Port Current

—

<0.1mA (DC 30V)

Insulation

Mechanistic

Optical Coupling

Leak current

—

0.1mA / DC 30V

Min. Load

—

DC5V 2mA

Max. Load

Resistive

2A point 8A COM port

0.5A point 0.8A COM port 0.3A HSPO point

Inductive

80VA

12W/DC24V 7.2W HSPO point

General

100W

0.9W/DC 24V

Response Time

<10ms

<0.2ms

(Pulse output terminal: <5us)
