LX3V 1212M/1412M PLC

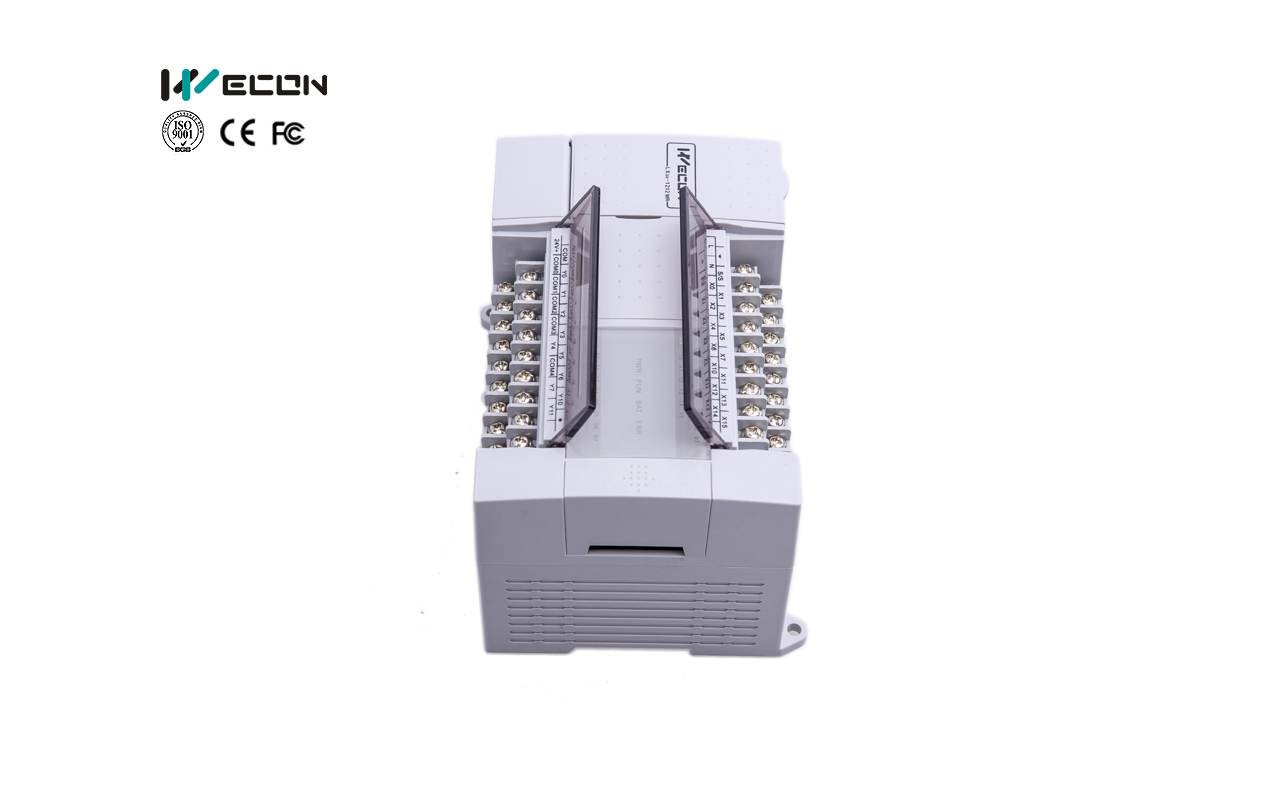

WeconPLC-LX3V 1212M/1412M PLC - Image 2

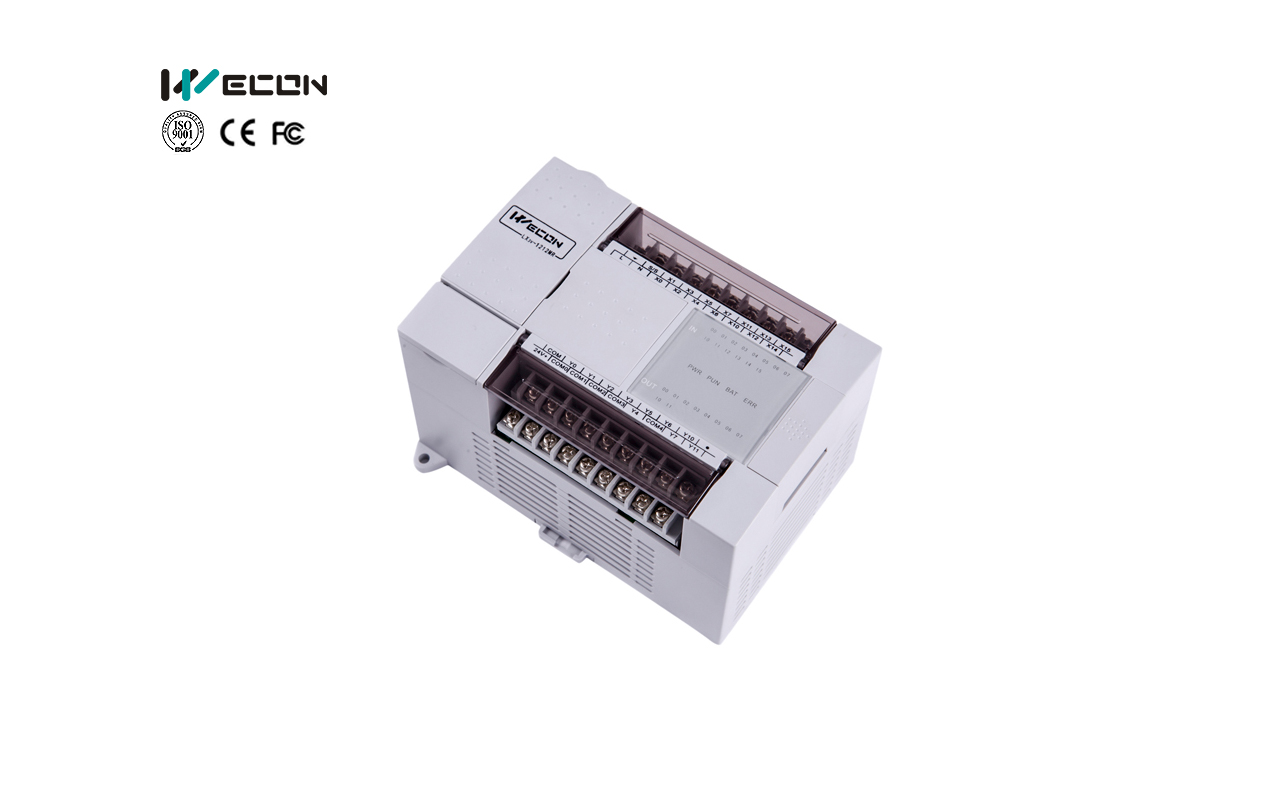

WeconPLC-LX3V 1212M/1412M PLC - Image 3

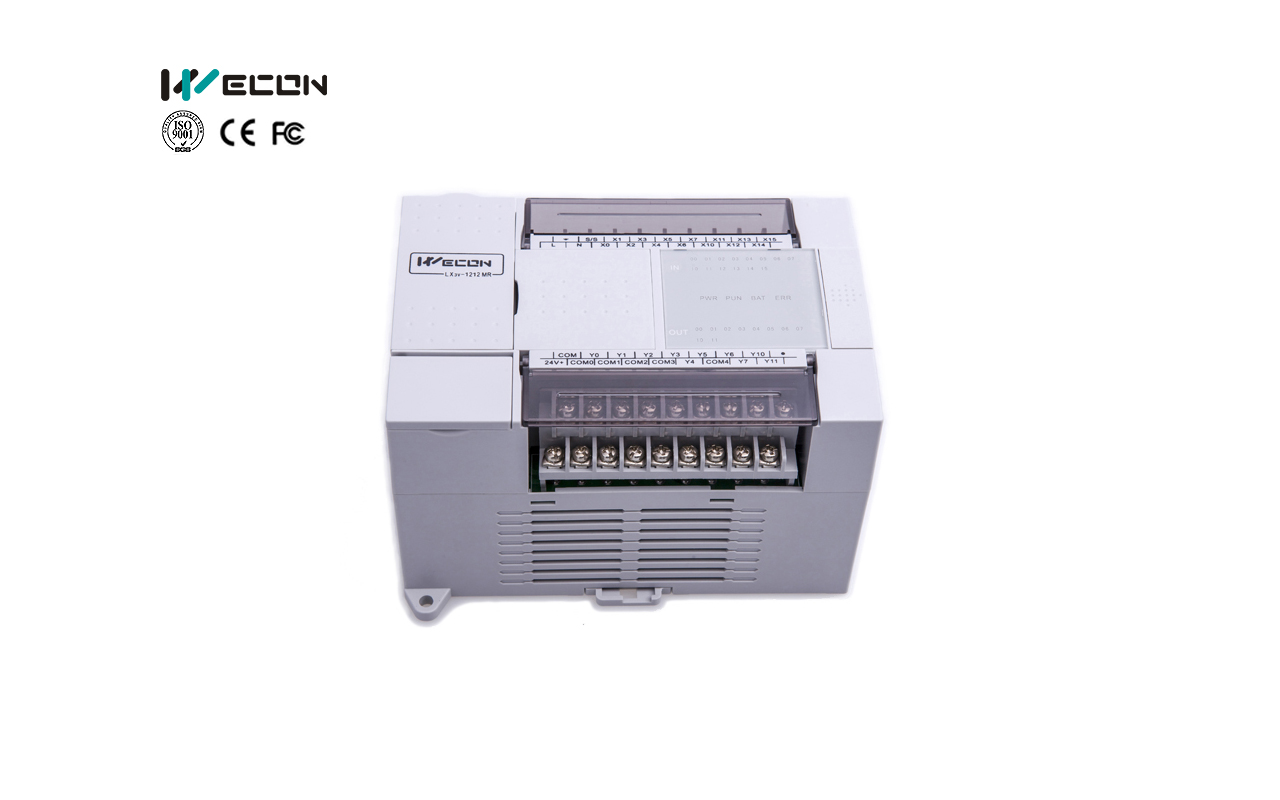

WeconPLC-LX3V 1212M/1412M PLC - Image 4

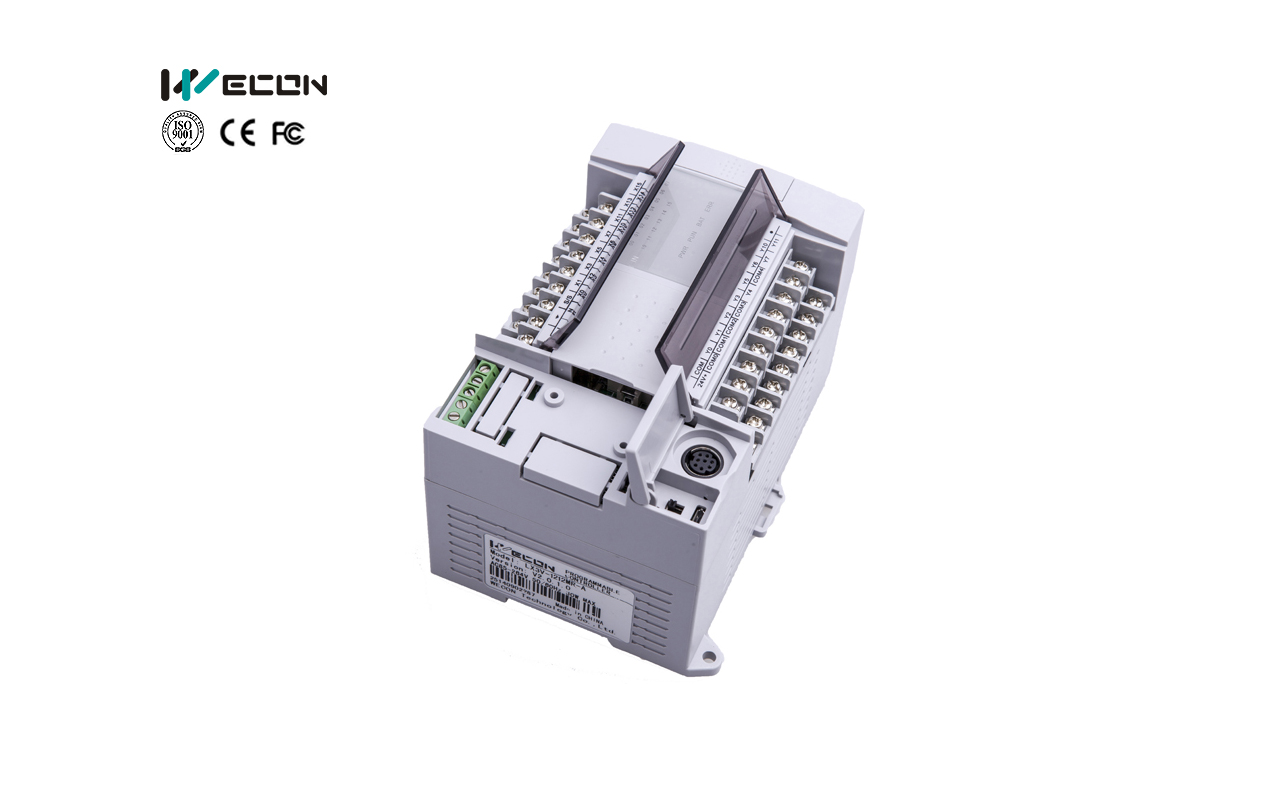

WeconPLC-LX3V 1212M/1412M PLC

The LX3V Series PLC is a high-performance programmable logic controller designed for industrial automation. It supports AC85-265V and DC24V power input with a 20W rated power output. Featuring 14 digital inputs and 12 transistor-type digital outputs, it also includes two 100KHz high-speed pulse outputs for precise motion control. Equipped with RS422 and RS485 communication ports, it supports one BD board expansion and is compatible with 2N NO Protocol and LX3V Protocol. Reliable and efficient, this PLC is ideal for seamless integration into various automation systems.

Add to Cart

Description

LX3V Series PLC – High-Performance Programmable Logic Controller

Boost your industrial automation with the LX3V Series PLC, a powerful and efficient programmable logic controller designed for seamless control and integration. Engineered for precision and reliability, this PLC is ideal for a wide range of automation applications, offering advanced connectivity and high-speed processing.

Key Features:

Wide Power Compatibility: Supports both AC85-265V and DC24V power input with a 20W rated power output, ensuring flexibility in various industrial setups.

Versatile I/O Configuration: Equipped with 14 digital inputs (DI) and 12 digital outputs (DO) (transistor-type) for efficient signal processing and machine control.

High-Speed Pulse Output: Features two 100KHz high-speed pulse outputs, delivering precise motion control for stepper motors and servo applications.

Multiple Communication Ports: Comes with RS422 and RS485 ports, allowing seamless integration with industrial networks and external devices. Also supports one BD board expansion for additional functionality.

Multi-Protocol Support: Compatible with 2N NO Protocol and LX3V Protocol, providing flexible connectivity options for different automation systems.
Why Choose the LX3V Series PLC?

Enhanced Performance – High-speed processing for demanding industrial tasks.
Reliable & Durable – Built to withstand harsh environments.
Easy Integration – Supports multiple communication protocols for hassle-free setup.

Upgrade your automation system with the LX3V Series PLC – the perfect solution for efficient, high-speed, and reliable industrial control.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Technical Data

Model

I/O

Output Type

Pulse

Output

RS485

BD

Board

Module

LX3V-1212MT-A

12 | 12

T

2

2

1

√

LX3V-1212MR-A

12 | 12

R

0

2

1

√

LX3V-1212MR2H-A

12 | 12

R/T

2

2

1

√

LX3V-1212MT4H-A

12 | 12

T

4

2

1

√

LX3V-1412MT-A

14 | 12

T

2

2

1

√

LX3V-1412MR-A

14 | 12

R

0

2

1

√

LX3V-1412MR2H-A

14 | 12

R/T

2

2

1

√

LX3V-1412MT4H-A

14 | 12

T

4

2

1

√

LX3V-1212MT-D

12 | 12

T

2

2

1

√

LX3V-1212MR-D

12 | 12

R

0

2

1

√

LX3V-1212MR2H-D

12 | 12

R/T

2

2

1

√

LX3V-1212MT4H-D

12 | 12

T

4

2

1

√

LX3V-1412MT-D

14 | 12

T

2

2

1

√

LX3V-1412MR-D

14 | 12

R

0

2

1

√

LX3V-1412MR2H-D

14 | 12

R/T

2

2

1

√

LX3V-1412MT4H-D

14 | 12

T

4

2

1

√

GENERAL



Item

LX3V Series

Running Mode

Round Scan/ Interrupt

Programming

Instruction List/ Ladder

Total Instructions

Basic Instructions: 27 / Applied Instruction: 138

Execute time

Basic Instructions: 0.06us / Applied Instruction: 1~10us

System Storage

16K

Download/ Monitoring

Serial Programming Cable / Mini USB

High Speed Pulse Output

Transistor: 2 channels (4 channel optional) / Relay N/A (2 channel optional)

External Interrupt

6 Channels

Timer Interrupt

3 Channels

Holding Addresses

Adjustable

Storage

FLASH

Filter

For all X input terminals

Serial Port

COM1: RS422 or RS485

COM2: RS485

Temperature

Working Temperature: 0 ~ 55℃ / Storage Temperature: -20 ~ 70℃

Humidity

5~ 85%RH (Without condensation)

Shock Resistance

JIS C 0040 Standard

Influence Immunity

Meet the IEC61000-4-4 and GB/T 17626.4 standard:

Noise voltage amplitude 1KVP-P, pulse width 10us, period 0.3 s, edge time 5ns, duration 1min.



POWER SUPPLY



Item

AC

DC

Power Supply

AC 85~265V 50 ~ 60Hz

DC 24V±10%

Power Outage Time

10ms

10ms

Power Fuse

250V 3.15A

250V 3.15A

Rush Current

<15A 5ms / AC 100V; <30A 5ms / AC 200V

<15A 1ms / DC 24V

Power Consumption

<35W

<30W

Power Output

DC 24V 850mA

No



OUTPUT

Item

Relay

Transistor

Output Mode

—

NPN

Input Power Supply

DC 24V

DC 24V

Output Circuit

<AC 250V or <DC 30

DC 5~30V

COM Port Current

—

<0.1mA (DC 30V)

Insulation

Mechanistic

Optical Coupling

Leak current

—

0.1mA / DC 30V

Min. Load

—

DC5V 2mA

Max. Load

Resistive

2A point 8A COM port

0.5A point 0.8A COM port 0.3A HSPO point

Inductive

80VA

12W/DC24V 7.2W HSPO point

General

100W

0.9W/DC 24V

Response Time

<10ms

<0.2ms

(Pulse output terminal: <5us)
