Motherboard specifications: Quad core high performance CPU comes with 128M Flash/64M RAM memory.

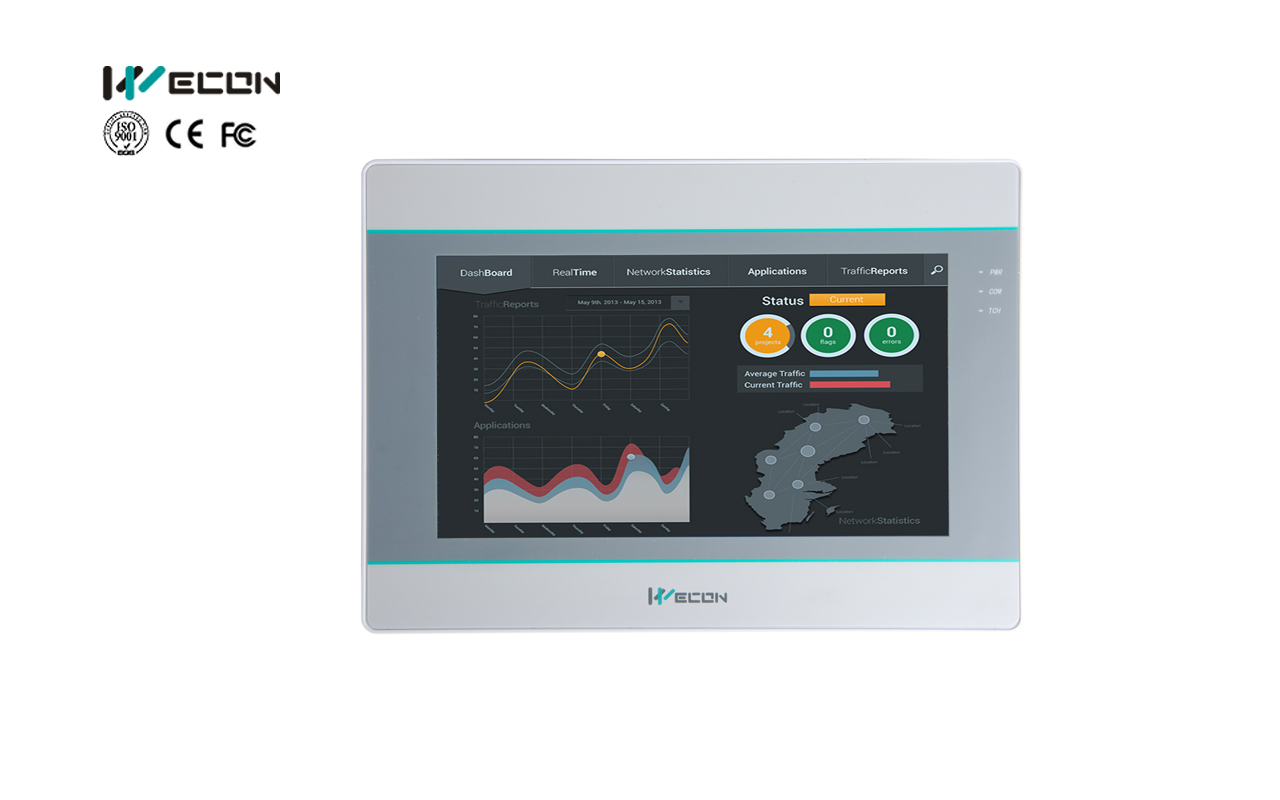

Display: 10.1 inch; Resolution: 1024*600;
Interfaces: COM1: RS232, RS422/RS485;
Download methods: USB download cable, USB flash drive download;
Only logged in customers who have purchased this product may leave a review.
| Series | PI3000ie | |
| Model | PI3102ie | |
| Main | OS | Linux 4.4.0 QT based |
| Processor | Cortex A35 1.2GHz | |
| Display | Size | 10.2″ |
| Screen | TFT | |
| Resolution | 1024*600 | |
| Color | 16,000k colors | |
| Brightness (cd/m2) | 350 | |
| Backlight | LED | |
| Backlight Lifetime | 50,000 hours | |
| Touch Panel | High precision four-wire resistive | |
| Storage | Memory | 64 MB |
| Flash | 128 MB | |
| SD Card Slot | — | |
| USB Port | USB2.0 Host + USB2.0 Client | |
| RTC | Real-time clock | Yes |
| Calendar | Yes | |

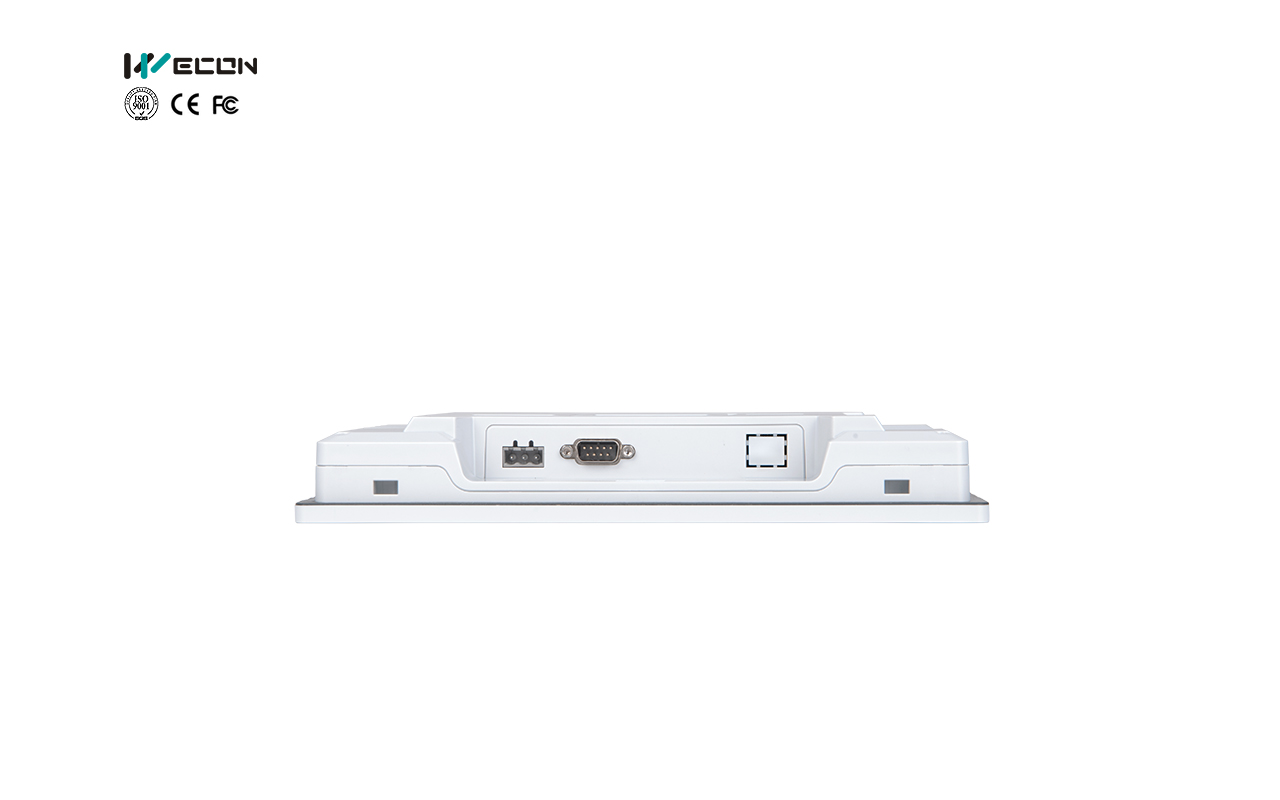

| I/O Port | COM1 | CN1:RS422/RS485 CN2: RS232 |
| COM2 | — | |
| COM3 | — | |
| Ethernet | — | |
| CANopen | — | |
| Wi-Fi | — | |
| 4G LTE | — | |
| Power | Rated Power | < 15W |
| Power Voltage | DC 24V | |
| Input range | DC 12 ~ 28V | |
| Shell Color | Grey | |
| Enclosure | Shell Material | PC+ABS |

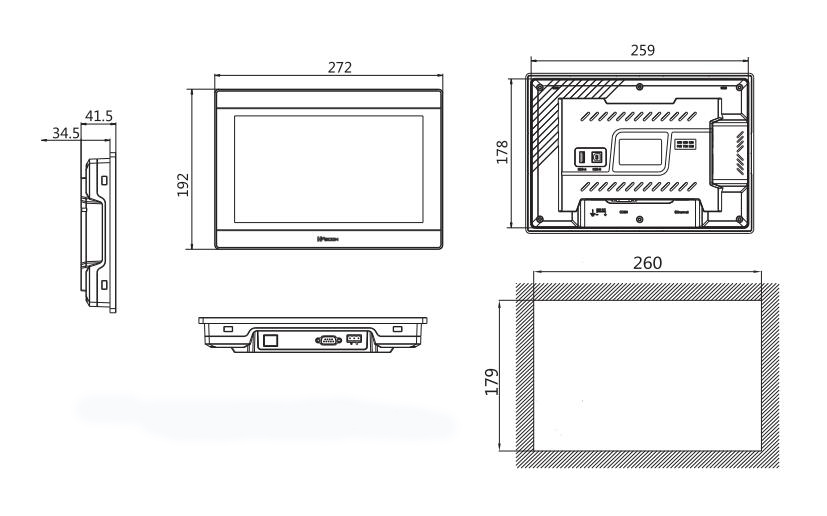

| Overall Size (mm) | 272.0W*190.0H*41.5D | |
| Mounting Size (mm) | 260.0W*179.0H | |
| Mounting Method | Panel Mount | |
| Weight (Kg) | 1.02 | |
| Environment | Working Temperature | -10 ~ 60°C |
| Storage Temperature | -20 ~ 70°C | |
| Humidity | 10 ~ 90％RH (Non-condensing) | |
| Vibration Resistance | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) | |
| Cooling | Air Cooling | |
| Software | Programming | PIStudio |
| Remote Access | — | |
| Email Alarm | — | |
| IP Camera | — | |
| Audio Output | — | |
| Video Player | — | |
| Data Tool | Yes | |
| Certificates | IP Code | IP65 (Front panel) |
| CE | CE Marked | |
| FCC | FCC Class A | |
| UL | — |
