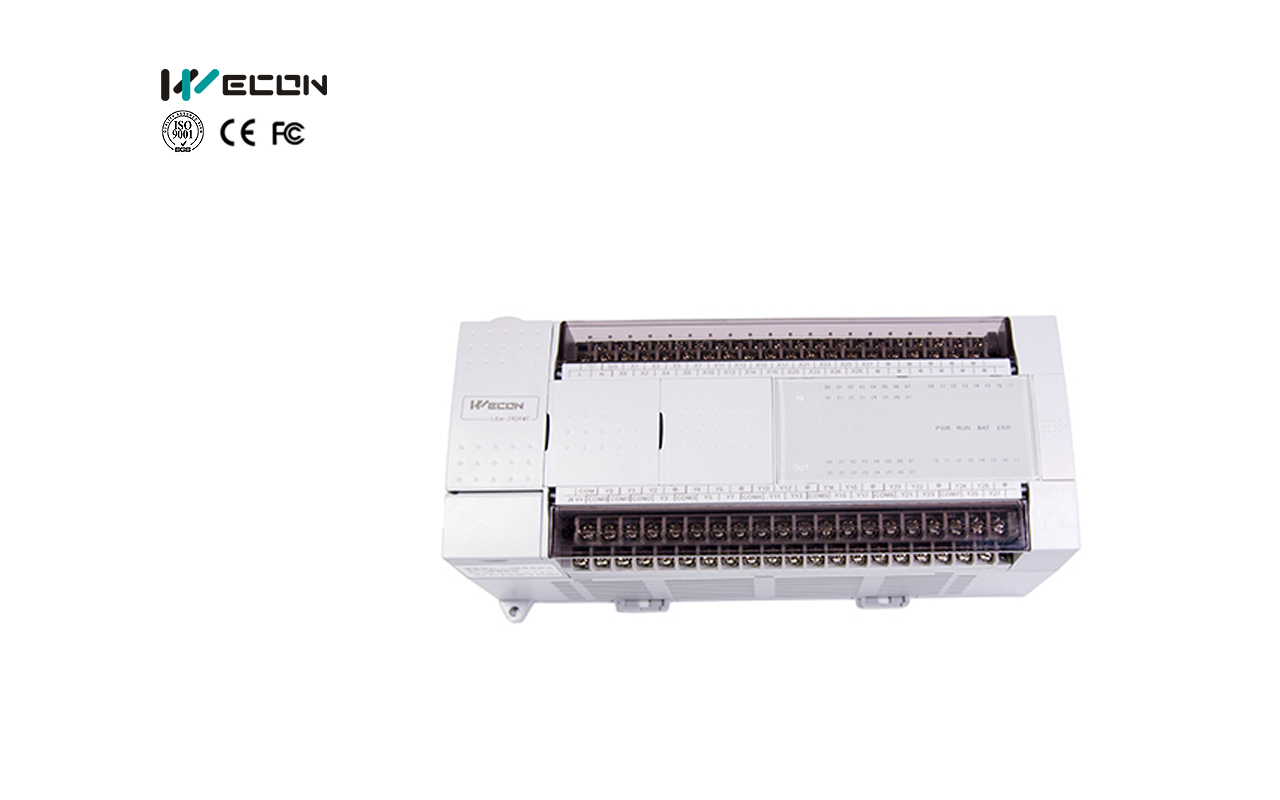

WeconPLC-LX5S 2424M/3624M

Description

With a maximum baud rate of 921600, a 100μs high-speed timer interrupt, and up to 100 high-speed counter interrupts, the LX5S 2424M/3624M provides exceptional response times for demanding automation systems. It supports E-CAM and electronic gear functions, ensuring synchronized motion control for robotics, CNC machinery, and industrial automation.

Equipped with efficient PID and CCPID auto-tuning, the PLC optimizes process stability and performance, reducing manual adjustments. It is compatible with LX3V series expansion modules and BD modules, allowing for seamless integration and expansion. The USB power supply adds flexibility, while the LX5V software provides an intuitive and user-friendly interface with structured programming and easy parameter configuration.

With an execution speed of 0.03μs to 0.08μs, the LX5S 2424M/3624M PLC operates 6 to 20 times faster than LX3V PLCs, ensuring high-speed and high-precision automation performance. It supports external high-speed pulse input, acceleration/deceleration control, and rising/falling edge interrupts, delivering fast, precise, and efficient industrial control.

Ideal for manufacturing, motion control, robotics, and automation equipment, the LX5S 2424M/3624M PLC offers superior speed, precision, and scalability, making it an excellent choice for modern industrial automation applications.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Technical Data

LX5S Model	I/O	Output Type	Pulse Counter	E-CAM	Pulse Output	RS485	BD Board	Module	Power Supply	Ethernet
LX5S-2424MT-A(D/AN/DN)	24/24	Transistor	6	YES	2	2	2	YES	AC(DC)	Optional
LX5S-2424MR-A(D/AN/DN)	24/24	Relay	6	YES	0	2	2	YES	AC(DC)	Optional
LX5S-2424MR2H-A(D/AN/DN)	24/24	Mix	6	YES	2	2	2	YES	AC(DC)	Optional
LX5S-2424MT4H-A(D/AN/DN)	24/24	Transistor	6	YES	4	2	2	YES	AC(DC)	Optional
LX5S-3624MT-A(D/AN/DN)	36/24	Transistor	6	YES	2	2	2	YES	AC(DC)	Optional
LX5S-3624MR-A(D/AN/DN)	36/24	Relay	6	N/A	0	2	2	YES	AC(DC)	Optional
LX5S-3624MR2H-A(D/AN/DN)	36/24	Mix	6	YES	2	2	2	YES	AC(DC)	Optional
LX5S-3624MT4H-A(D/AN/DN)	36/24	Transistor	6	YES	4	2	2	YES	AC(DC)	Optional

GENERAL

Item	LX5S Series
Running Mode	Round Scan / Interrupt / Event
Programming	Instruction list/ladder diagram
Total Instructions	Basic Instructions: 29 / Application Instructions: 170
Execute time	Basic Instructions: 0.03-0.08us
System Storage	512KB
Download/ Monitoring	Programming cable (serial type) / Micro USB
High Speed Pulse Output	Transistor type; 2 channels/200KHz
External Input Interrupt	X0-X5 supports both rising and falling edges
Timer Interrupt	100 channels, support 0.1ms interrupt
High Speed Input Single	6 channel 150K Hz;
High Speed Input AB Phase	3 channel 100K Hz, supports 2 or 4 frequency times;
Holding Addresses	Adjusted by software
Storage	FLASH
Filter	For all X input terminals
Serial Port	COM1（RS422 / RS485), COM2（RS485）
Temperature	Working Temperature: 0 ~ 55℃ / Storage Temperature: 0 ~ 70℃
Humidity	35~ 85%RH (Without condensation)
Shock Resistance	JIS C 0040 Standard
Influence Immunity	Meet the IEC61000-4-4 and GB/T 17626.4 standard: Noise voltage amplitude 1KVP-P, pulse width 10us, period 0.3 s, edge time 5ns, duration 1min.
USB Supply	YES

POWER SUPPLY

Item	AC	DC
Power Supply	AC 85~265V 50 ~ 60Hz	DC 24V±10%
Power Outage Time	10ms	10ms
Power Fuse	250V 3.15A	250V 3.15A
Rush Current	<15A 5ms / AC 100V; <30A 5ms / AC 200V	<15A 1ms / DC 24V
Power Consumption	<60W	<30W
Power Output	DC 24V 700mA	<30w(Not include the external power supply for modules)

OUTPUT

Item		Relay	Transistor
Output Mode		--	NPN
Input Power Supply		DC 24V	DC 24V
Output Circuit		<AC 250V or <DC 30	DC 5~30V
COM Port Current		--	<0.1mA (DC 30V)
Insulation		Mechanistic	Optical Coupling
Leak current		--	0.1mA / DC 30V
Min. Load		--	DC5V 2mA
Max. Load	Resistive	2A point 8A COM port	0.5A point 0.8A COM port 0.3A HSPO point
	Inductive	80VA	12W/DC24V 7.2W HSPO point
	General	100W	0.9W/DC 24V
Response Time		<10ms	<0.2ms (Pulse output terminal: <5us)
