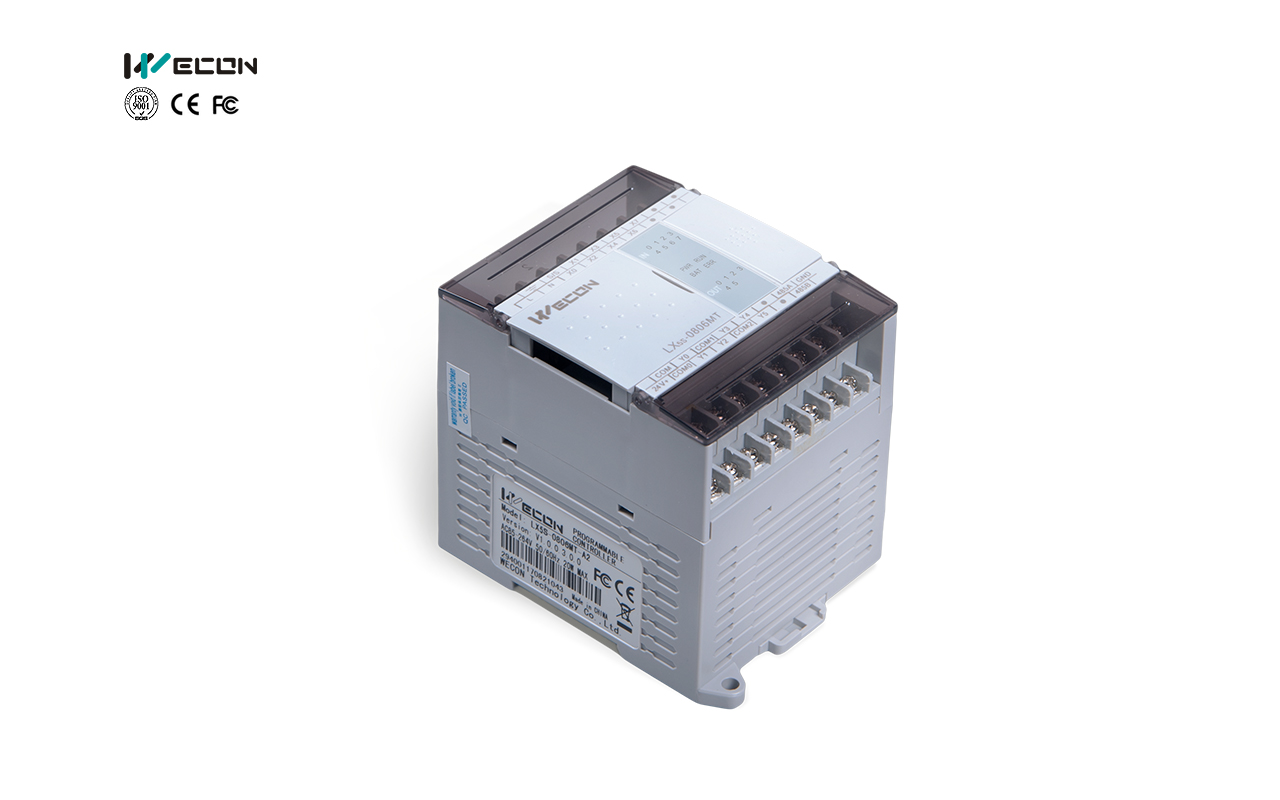

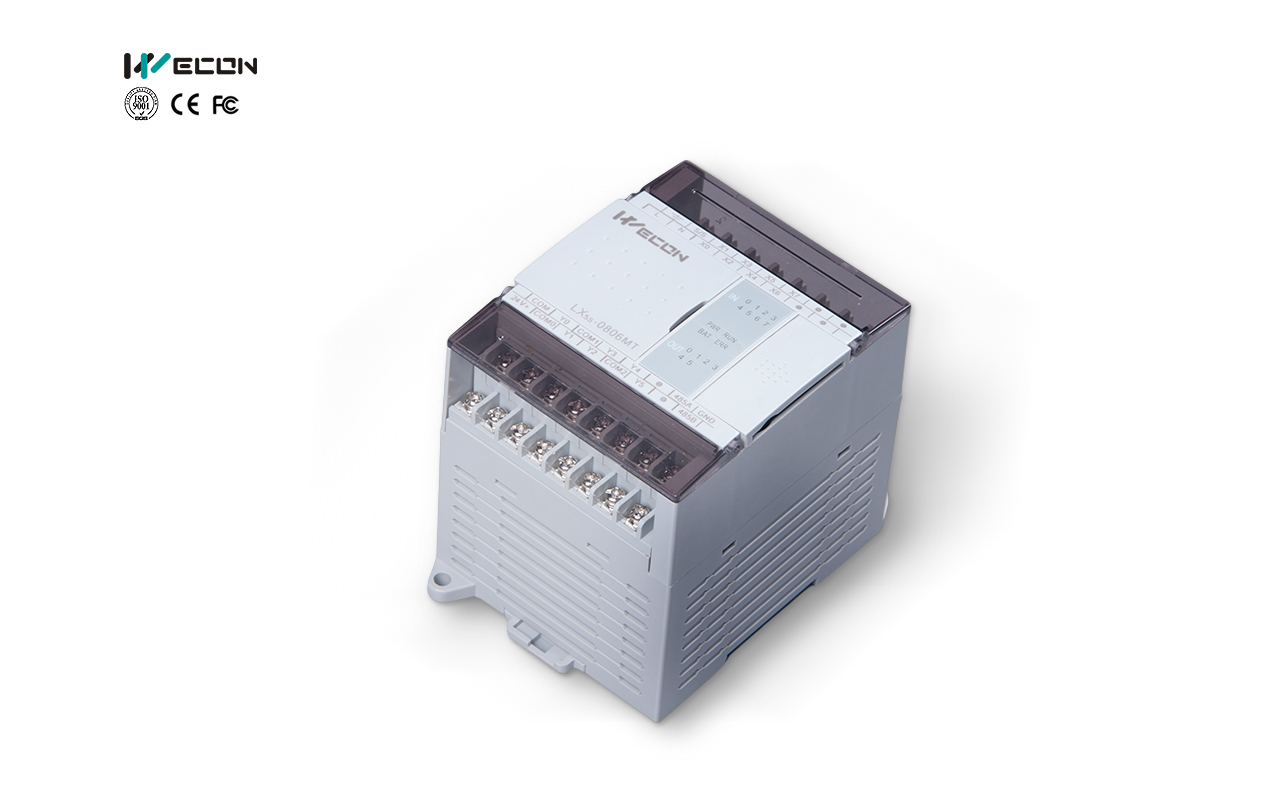

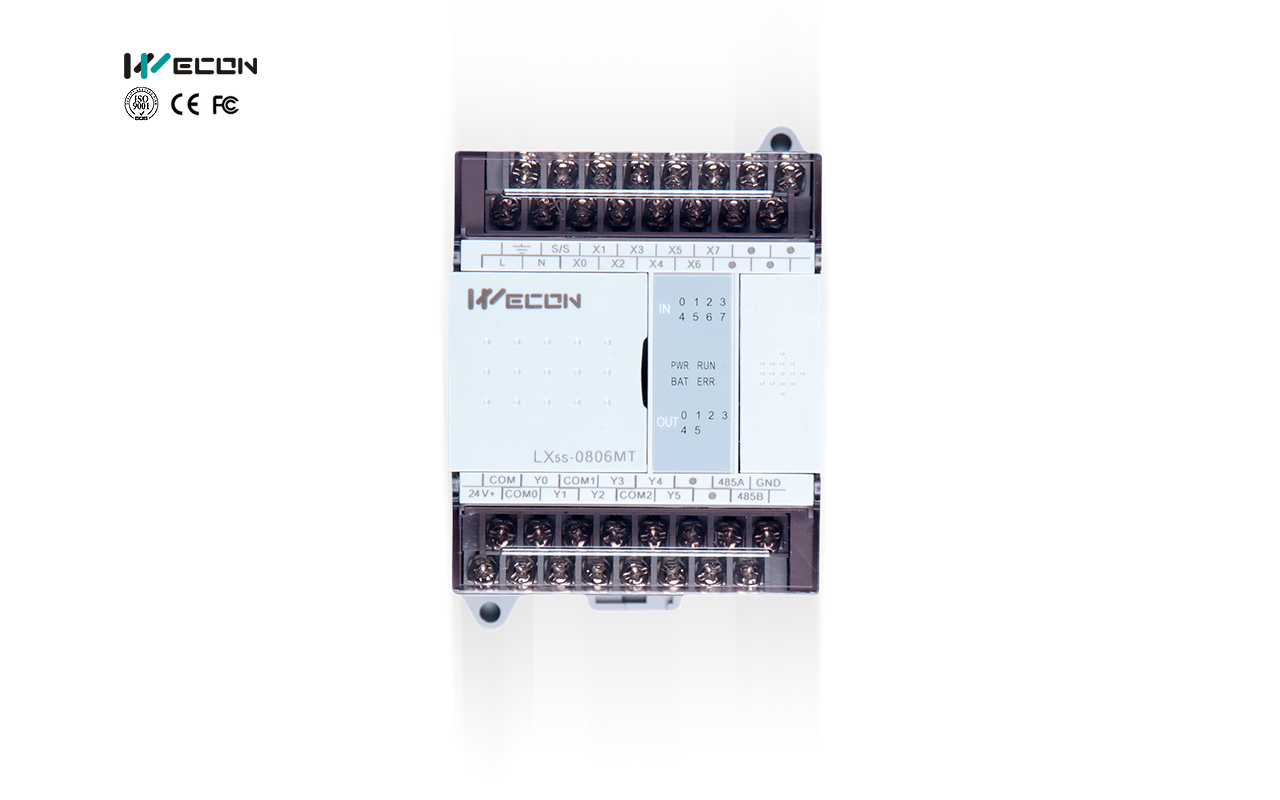

WeconPLC-LX5S 0806M/1208M PLC

The LX5S 0806M/1208M PLC is a high-performance, cost-effective programmable logic controller designed for precision control and fast execution in industrial automation. With the advanced capabilities of the LX5V series and a competitive price, this PLC offers exceptional processing speed, high-speed pulse control, and flexible communication options, making it an ideal choice for demanding automation applications.

Add to Cart

Description

Supporting real-time pulse frequency and position modification, the LX5S ensures smooth and adaptive motion control. It offers a maximum baud rate of 921600, allowing for ultra-fast data transmission, and features a 100μs high-speed timer interrupt along with support for up to 100 high-speed counter interrupts, ensuring accurate and responsive operations.

Equipped with E-CAM and electronic gear support, the LX5S excels in precise motion synchronization, making it suitable for applications requiring high-speed coordination. Additionally, it features efficient and stable PID and CCPID auto-tuning, ensuring optimal process control without manual adjustments.

For seamless integration, the LX5S is compatible with LX3V series expansion modules and BD modules, enhancing scalability and functionality. It also supports USB power supply, providing convenience and flexibility for various industrial applications. The LX5V software offers an intuitive interface, structured programming, and detailed parameter configurations, simplifying programming and system setup.

With an execution speed of 0.03μs to 0.08μs, the LX5S PLC runs 6 to 20 times faster than LX3V PLCs, making it perfect for applications requiring high-speed, high-precision control. It supports external high-speed pulse input, acceleration/deceleration control, and rising/falling edge interrupts, ensuring precise and efficient motion operations.

Ideal for diverse industrial automation applications, including manufacturing, robotics, packaging, and motion control, the LX5S PLC delivers powerful performance, reliability, and scalability to meet the demands of modern control systems.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Physical & Electrical

LX5S Model

I/O

Output Type

Pulse

Counter

E-CAM

Pulse Output

RS485

BD Board

Module

Power Supply

Ethernet

LX5S-0806MT-A(D)

08/06

Transistor

2

YES

2

1

1

N/A

AC(DC)

N/A

LX5S-0806MR-A(D)

08/06

Relay

2

N/A

0

1

1

N/A

AC(DC)

N/A

LX5S-0806MR2H-A(D)

08/06

Mix

2

YES

2

1

1

N/A

AC(DC)

N/A

LX5S-1208MT-A(D)

12/08

Transistor

2

YES

2

1

1

N/A

AC(DC)

N/A

LX5S-1208MR-A(D)

12/08

Relay

2

N/A

0

1

1

N/A

AC(DC)

N/A

LX5S-1208MR2H-A(D)

12/08

Mix

2

YES

2

1

1

N/A

AC(DC)

N/A





GENERAL

Item

LX5S Series

Running Mode

Round Scan / Interrupt / Event

Programming

Instruction list/ladder diagram

Total Instructions

Basic Instructions: 29 / Application Instructions: 170

Execute time

Basic Instructions: 0.03-0.08us

System Storage

512KB

Download/ Monitoring

Programming cable (serial type) / Micro USB

High Speed Pulse Output

Transistor type; 2 channels/200KHz

High Speed Counter Interrupt

100 Channels

External  Input Interrupt

X0-X5 supports both rising and falling edges

Timer Interrupt

100 channels, support 0.1ms interrupt

High Speed Input Single

2 channel 150K Hz;

4 channel 10KHz

High Speed Input AB Phase

1 channel 100K Hz, supports 2 or 4 frequency times,

2 channels 10K Hz, supports 2 or 4 frequency times

Holding Addresses

Adjusted by software

Storage

FLASH

Filter

For all X input terminals

Serial Port

COM1（RS422),

COM2（RS485）

Temperature

Working Temperature: 0 ~ 55℃ / Storage Temperature: 0 ~ 70℃

Humidity

35~ 85%RH (Without condensation)

Shock Resistance

JIS C 0040 Standard

Influence Immunity

Meet the IEC61000-4-4 and GB/T 17626.4 standard:

Noise voltage amplitude 1KVP-P, pulse width 10us, period 0.3 s, edge time 5ns, duration 1min.

USB Supply

YES

POWER SUPPLY

Item

AC

DC

Power Supply

AC 85~265V 50 ~ 60Hz

DC 24V±10%

Power Outage Time

10ms

10ms

Power Fuse

250V 3.15A

250V 3.15A

Rush Current

<15A 5ms / AC 100V; <30A 5ms / AC 200V

<15A 1ms / DC 24V

Power Consumption

<60W

<30W

Power Output

DC 24V 700mA

<30w(Not include the external power supply for modules)



OUTPUT

Item

Relay

Transistor

Output Mode

—

NPN

Input Power Supply

DC 24V

DC 24V

Output Circuit

<AC 250V or <DC 30

DC 5~30V

COM Port Current

—

<0.1mA (DC 30V)

Insulation

Mechanistic

Optical Coupling

Leak current

—

0.1mA / DC 30V

Min. Load

—

DC5V 2mA

Max. Load

Resistive

2A point 8A COM port

0.5A point 0.8A COM port 0.3A HSPO point

Inductive

80VA

12W/DC24V 7.2W HSPO point

General

100W

0.9W/DC 24V

Response Time

<10ms

<0.2ms

(Pulse output terminal: <5us)
