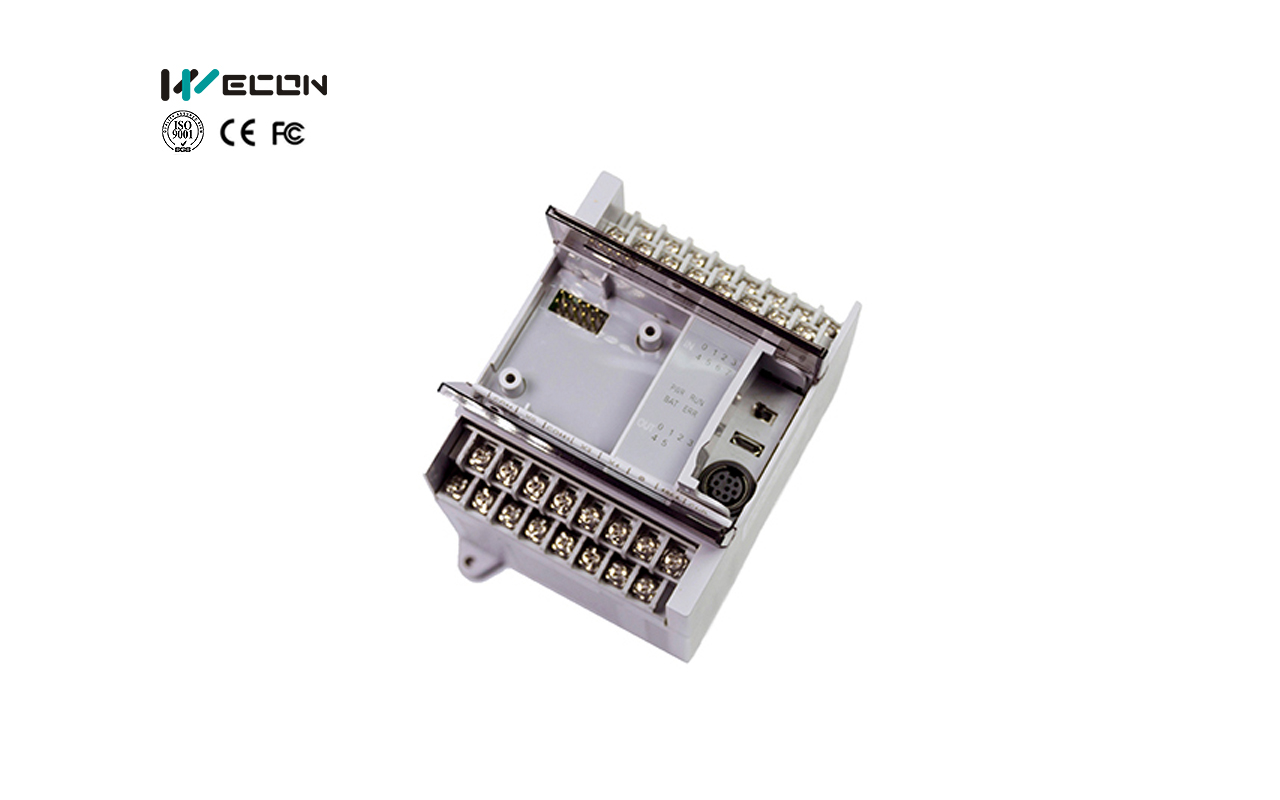

Introducing the LX3V-0806MT-A(D) – a high-performance industrial control unit designed to optimize your automation system. This versatile device comes in two variants: LX3V-0806MT-A(D)1 and LX3V-0806MT-A(D)2, each tailored to meet specific operational needs.

Add to Cart

Description

Power Supply Options: Choose from two convenient power supply configurations:
AC85-265V (A) for versatile AC power connections,
DC24V (D) for efficient DC-based operations.
With a 50W rated power, this device ensures consistent and reliable performance for your systems.

I/O Compatibility: Equipped with 8x DI (Digital Inputs) and 6x DO (Digital Outputs) (transistor-type), this unit provides ample I/O connections for seamless automation control. Additionally, it features a 2-channel 100K high-speed pulse output, perfect for high-speed applications that demand quick data processing and precision.

Connectivity Ports: The LX3V-0806MT-A(D) supports industry-standard communication protocols with RS422 and RS485 ports. It also offers support for an optional 1 BD board, ensuring extended versatility for various applications.

Protocol Support:
The LX3V-0806MT-A(D)1 supports 1S NO PROTOCOL, ideal for simple and reliable communication.
The LX3V-0806MT-A(D)2 features 2N NO PROTOCOL, offering more advanced functionality for demanding systems.

Whether you’re looking to upgrade your industrial automation setup or require a flexible, high-performance control unit for specific projects, the LX3V-0806MT-A(D) is designed to deliver exceptional reliability and efficiency.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Specification

Model

I/O

Output Type

Pulse

Output

RS485

BD

Board

Module

LX3V-0806MR-A2

8 / 6

R

0

1

1

×

LX3V-0806MT-A2

8 / 6

T

2

1

1

×

LX3V-1208MR-A2

12 / 8

R

0

1

1

×

LX3V-1208MT-A2

12 / 8

T

2

1

1

×

LX3V-1208MR-A2

12 / 8

R

0

1

1

×

LX3V-1208MR2H-A2

12 / 8

R/T

2

1

1

×

LX3V-0806MR-D2

8 / 6

R

0

1

1

×

LX3V-0806MT-D2

8 / 6

T

2

1

1

×

LX3V-1208MR-D2

12 / 8

R

0

1

1

×

LX3V-1208MT-D2

12 / 8

T

2

1

1

×

LX3V-1208MR-D2

12 / 8

R

0

1

1

×

LX3V-1208MR2H-D2

12 / 8

R/T

2

1

1

×

GENERAL

Item

LX3V Series

Running Mode

Round Scan/ Interrupt

Programming

Instruction List/ Ladder

Total Instructions

Basic Instructions: 27 / Applied Instruction: 138

Execute time

Basic Instructions: 0.06us / Applied Instruction: 1~10us

System Storage

16K

Download/ Monitoring

Serial Programming Cable / Mini USB

High Speed Pulse Output

Transistor: 2 channels (4 channel optional) / Relay N/A (2 channel optional)

External Interrupt

6 Channels

Timer Interrupt

3 Channels

Holding Addresses

Adjustable

Storage

FLASH

Filter

For all X input terminals

Serial Port

COM1: RS422

COM2: RS485

Temperature

Working Temperature: 0 ~ 55℃ / Storage Temperature: -20 ~ 70℃

Humidity

5~ 85%RH (Without condensation)

Shock Resistance

JIS C 0040 Standard

Influence Immunity

Meet the IEC61000-4-4 and GB/T 17626.4 standard:

Noise voltage amplitude 1KVP-P, pulse width 10us, period 0.3 s, edge time 5ns, duration 1min.

POWER SUPPLY

Item

AC

DC

Power Supply

AC 85~265V 50 ~ 60Hz

DC 24V±10%

Power Outage Time

10ms

10ms

Power Fuse

250V 3.15A

250V 3.15A

Rush Current

<15A 5ms / AC 100V; <30A 5ms / AC 200V

<15A 1ms / DC 24V

Power Consumption

<35W

<30W

Power Output

DC 24V 850mA

No

OUTPUT

Item

Relay

Transistor

Output Mode

—

NPN

Input Power Supply

DC 24V

DC 24V

Output Circuit

<AC 250V or < DC 30

DC 5~30V

COM Port Current

—

<0.1mA (DC 30V)

Insulation

Mechanistic

Optical Coupling

Leak current

—

0.1mA / DC 30V

Min. Load

—

DC5V 2mA

Max. Load

Resistive

2A point 8A COM port

0.5A point 0.8A COM port 0.3A HSPO point

Inductive

80VA

12W/DC24V 7.2W HSPO point

General

100W

0.9W/DC 24V

Response Time

<10ms

<0.2ms

(Pulse output terminal: <5us)
