High speed IO: 8-channel 150K Hz single phase inputs, 8-channel 100K Hz AB phase inputs, 8-channel 200K Hz outputs
Communication ports: 2 RS485 serial ports, support 2 BD modules and 1 Ethernet port (Optional)
16/24 inputs and 16 outputs, support up to 16 extension modules
Only logged in customers who have purchased this product may leave a review.
|

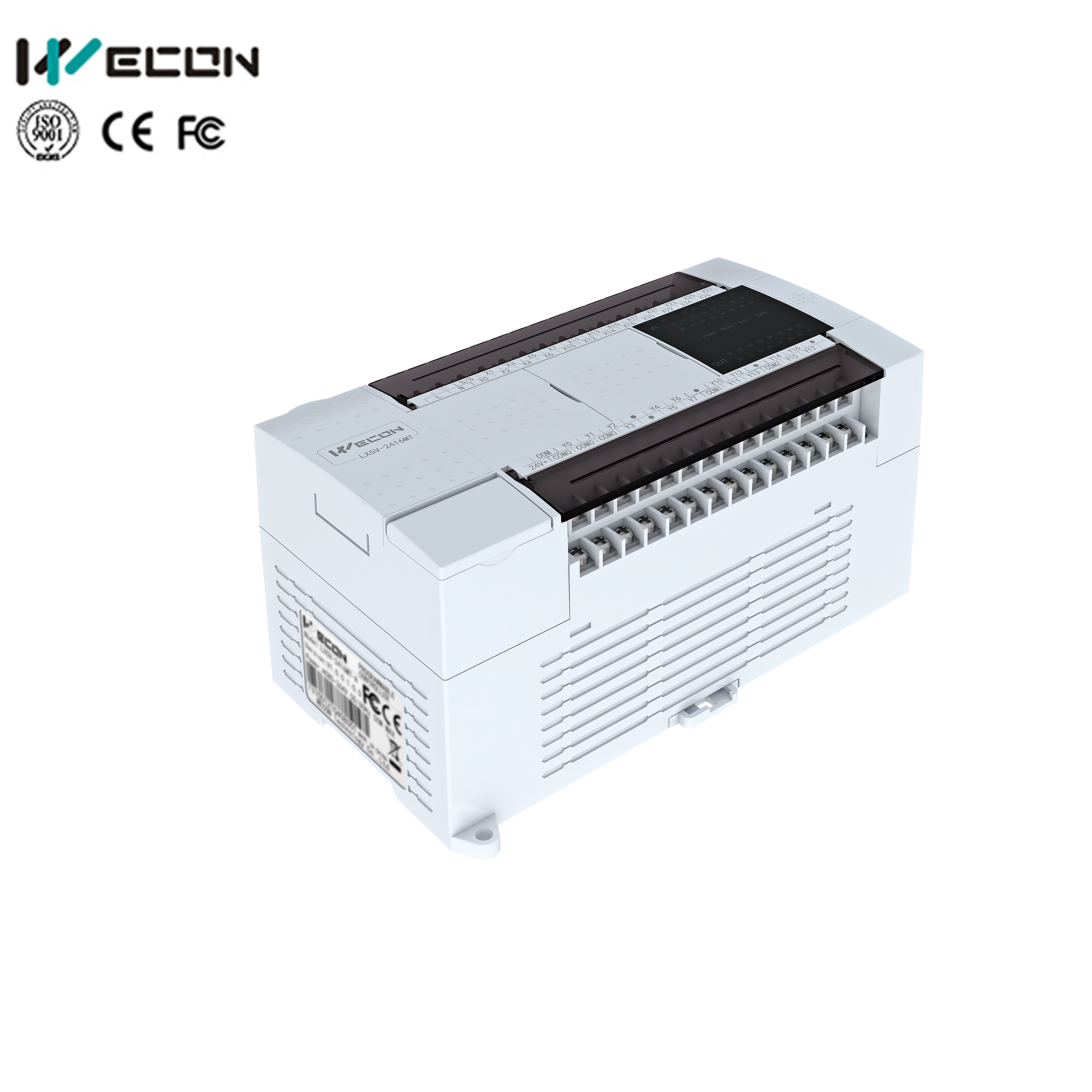

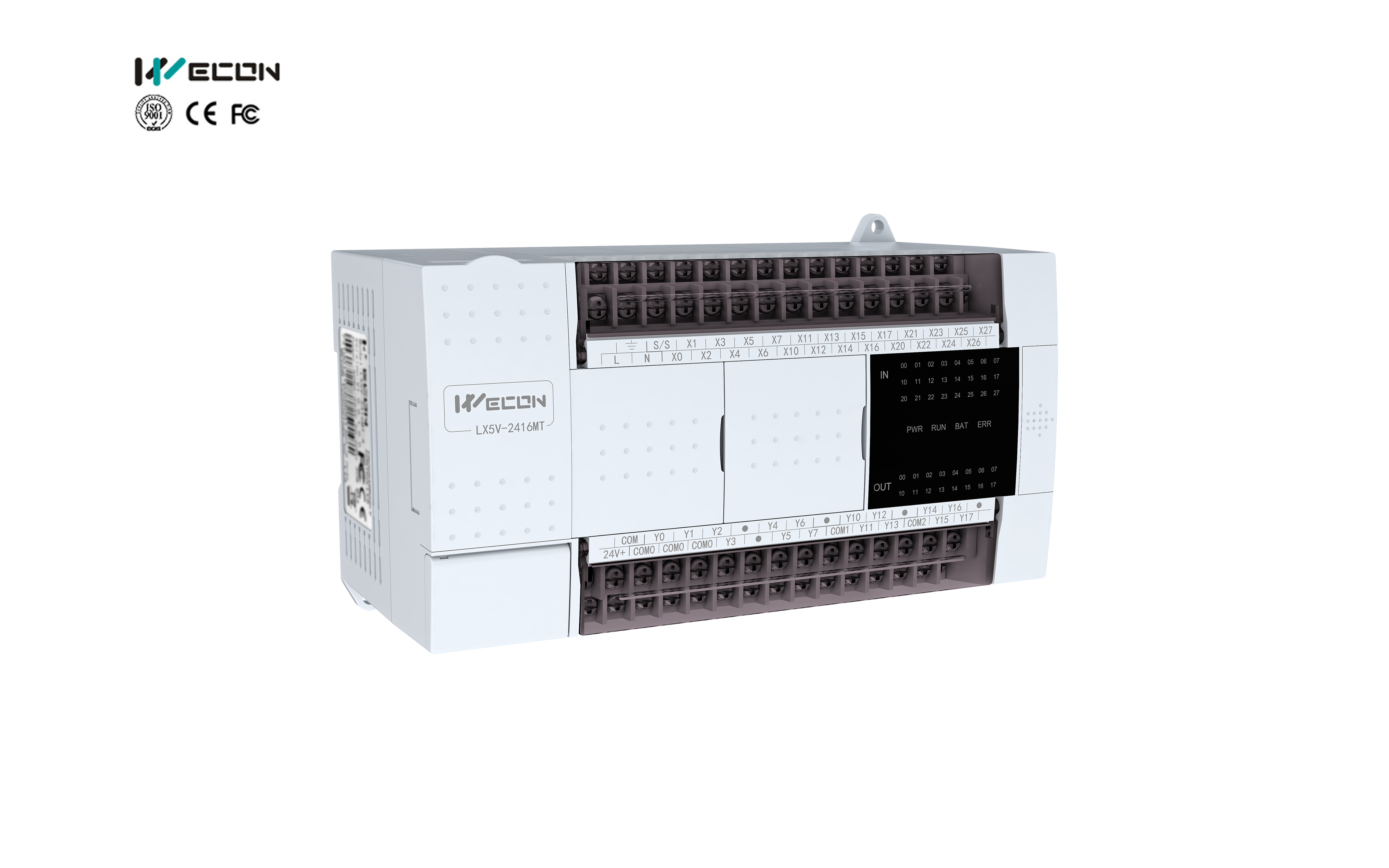

LX5V Model |
I/O |
Output Type |
Pulse Counter |
E-CAM |
Pulse Output |
RS485 |
BD Board |
Module |
Power Supply |
Ethernet |
|
LX5V-1616MT-A(D/AN/DN) |
16/16 |
Transistor |
8 |
YES |
8 |
2 |
2 |
YES |
AC(DC) |
Optional |
|
LX5V-2416MT-A(D/AN/DN) |
24/16 |
Transistor |
8 |
YES |
8 |
2 |
2 |
YES |
AC(DC) |
Optional |
GENERAL
|
Item |
LX5V 1616MT/2416MT |
|
Running Mode |
Round Scan/ Interrupt |
|
Programming |
Instruction List/ Ladder |
|
Total Instructions |
Basic Instructions: 29 / Application Instructions: 170 |
|
Execute time |
Basic Instructions: 0.01-0.03us |
|
System Storage |
512KB |
|
Download/ Monitoring |
Serial Programming Cable (Serial port) / Micro USB |
|
High Speed Pulse Output |
Transistor: 8 channels / 200K |
|
High Speed Counter Interrupt |
100 channels |
|
External Input Interrupt |
X0-X7 supports both rising and falling edges |
|
Timer Interrupt |
100 Channels, Interruption time (min): 0.1ms |
|
High Speed Input Single |
8 Channels 150KHz |
|
High Speed Input AB Phase |
8 channel 100KHz, frequency modes:1/2/4 times |
|
Holding Addresses |
Adjusted by software |
|
Storage |
FLASH |
|
Filter |
For all X input terminals |
|
Serial Port |
COM1: RS422 or RS485 COM2: RS485 |
|
Temperature |
Working Temperature: 0 ~ 55℃ / Storage Temperature: -20 ~ 70℃ |
|
Humidity |
35~ 85%RH (Without condensation) |
|
Shock Resistance |
JIS C 0040 Standard |
|
Influence Immunity |
Meet the IEC61000-4-4 and GB/T 17626.4 standard: Noise voltage amplitude 1KVP-P, pulse width 10us, period 0.3 s, edge time 5ns, duration 1min. |
|
USB Supply |
Use for upgrading firmware, downloading ladder diagram |
POWER SUPPLY
|
Item |
AC |
DC |
|
Power Supply |
AC 85~265V 50 ~ 60Hz |
DC 24V±10% |
|
Power Outage Time |
10ms |
10ms |
|
Power Fuse |
250V 3.15A |
250V 3.15A |
|
Rush Current |
<15A 5ms / AC 100V; <30A 5ms / AC 200V |
<15A 1ms / DC 24V |
|
Power Consumption |
<60W |
<30W |
|
Power Output |
DC 24V 700mA |
<30w(Not include the external power supply for modules) |
OUTPUT
|
Item |
Relay |
Transistor |
|
|
Output Mode |
— |
NPN |
|
|
Input Power Supply |
DC 24V |
DC 24V |
|
|
Output Circuit |
<AC 250V or <DC 30 |
DC 5~30V |
|
|
COM Port Current |
— |
<0.1mA (DC 30V) |
|
|
Insulation |
Mechanistic |
Optical Coupling |
|
|
Leak current |
— |
0.1mA / DC 30V |
|
|
Min. Load |
— |
DC5V 2mA |
|
|
Max. Load |
Resistive |
2A point 8A COM port |
0.5A point 0.8A COM port 0.3A HSPO point |
|
Inductive |
80VA |
12W/DC24V 7.2W HSPO point |
|
|
General |
100W |
0.9W/DC 24V |
|
|
Response Time |
<10ms |
<0.2ms (Pulse output terminal: <5us) |
|
