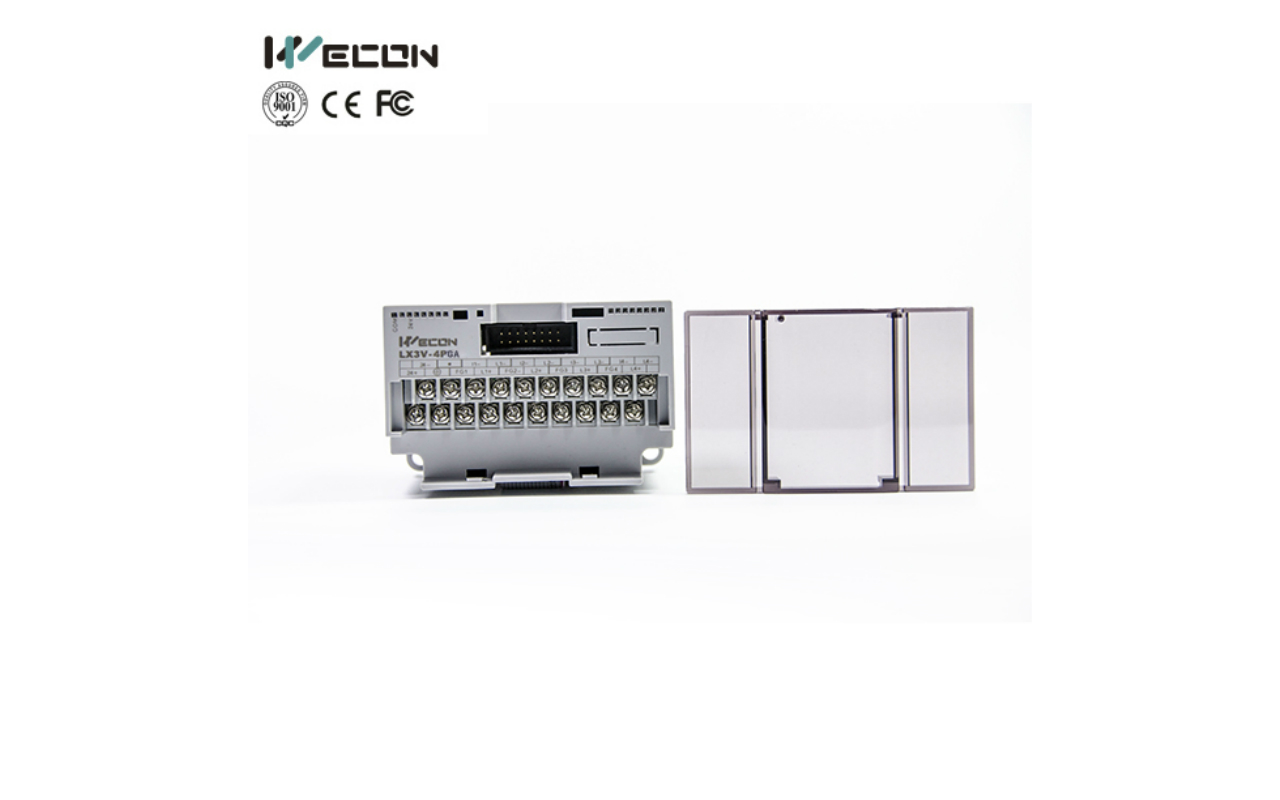

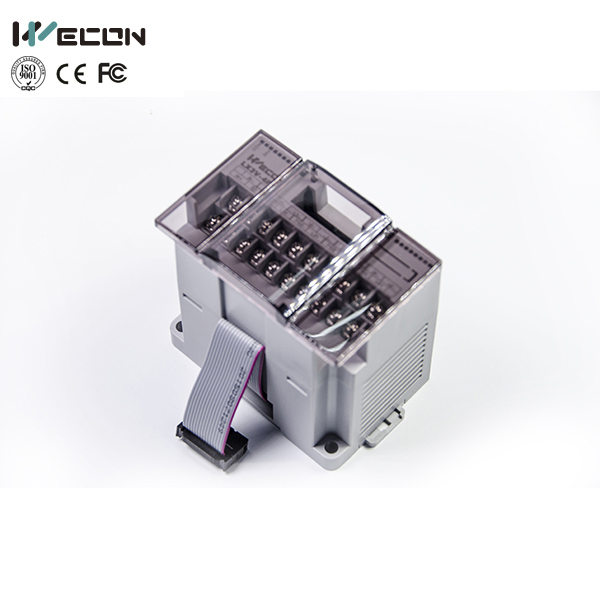

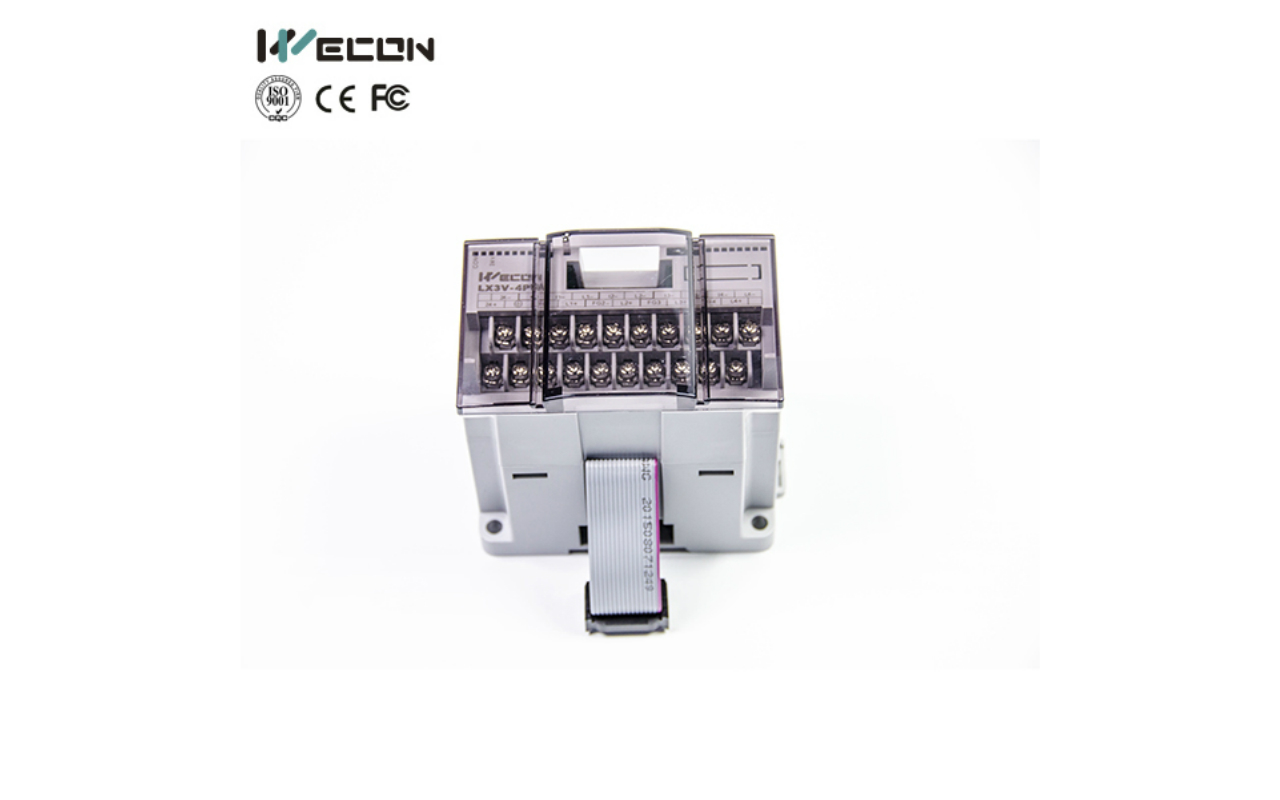

LX3V-4PGA
Supports 4*200KHZ high-speed pulse output. Supports T, S curve acceleration and deceleration.
Supports two-speed positioning and interrupt one-speed positioning. Supports variable speed operation. Supports single-speed positioning.
LX3V-4PGB
Supports 4*200KHZ high-speed pulse output. Supports T curve acceleration and deceleration.
Supports single-speed positioning.
Only logged in customers who have purchased this product may leave a review.
| Model | Channels | Resolution | Functionality |
| LX3V-4PGA | 4 | — | support trapezoidal / S-type acceleration and deceleration, dual-speed positioning, interrupt single-speed positioning, variable speed operation. |
| LX3V-4PGB | 4 | — | support trapezoidal acceleration and deceleration. Support single-speed positioning. |
Specification
| Items | LX3V-4PGA | LX3V-4PGB |
| Output circuit |
|
|
| Power supply | DC5V ~ 30V | |
| Circuit insulation | Photo-coupling | |
| LED | LED on when Photo-coupling is driven | |
| Load Resistance | 0.5A/ one point,0.8A/ two point | |
| Load Inductance | 12W/DC24V | |
| Load Lamp | 0.9W/DC24V | |
| Leakage current | 0.1mA/DC30V | |
| Minimum load | —– | |
| OFF->ON/ON->OFF | Less than 0.2ms | |
| Output signal | NPN | |
| CE Certification | CE marked | |
