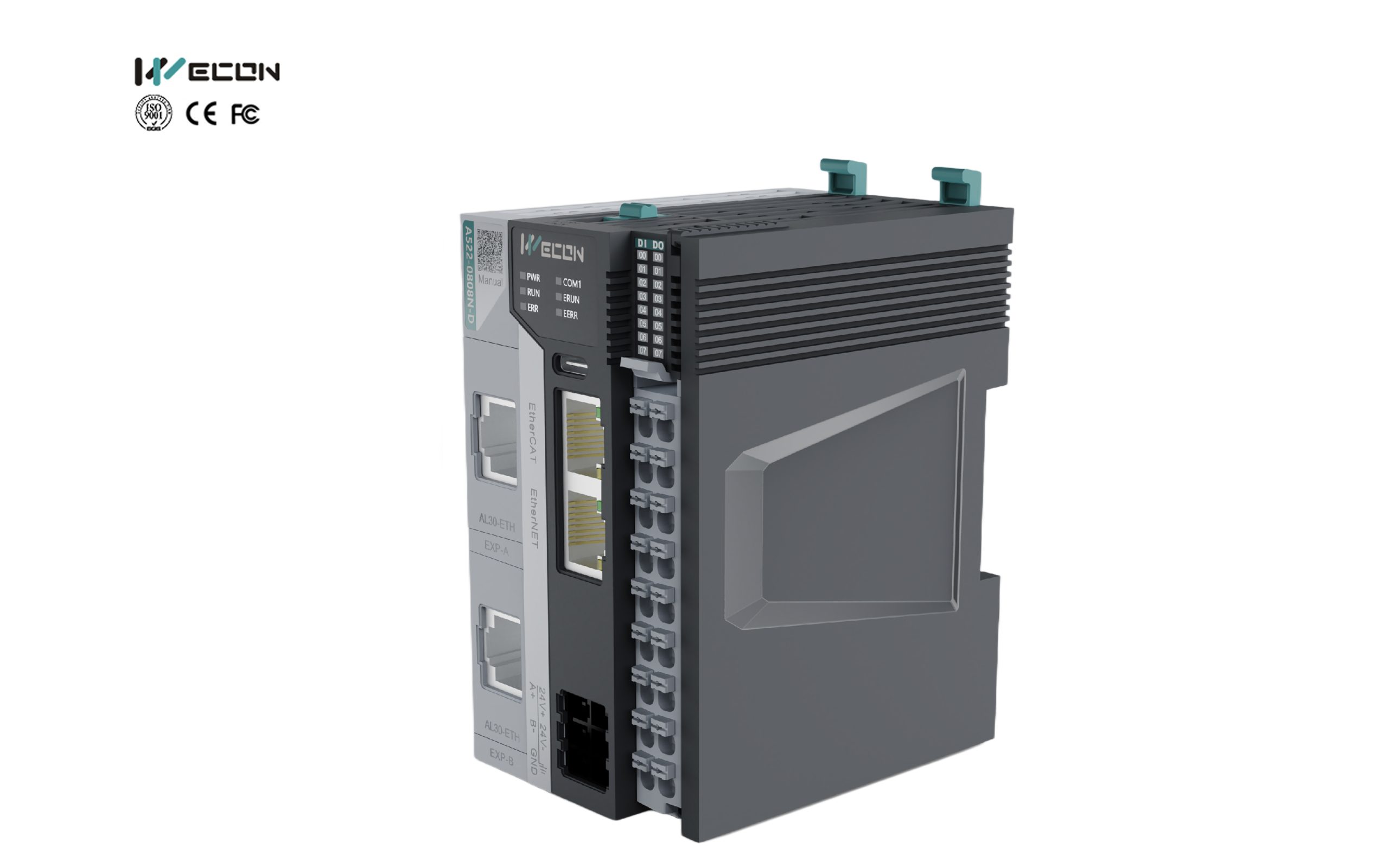

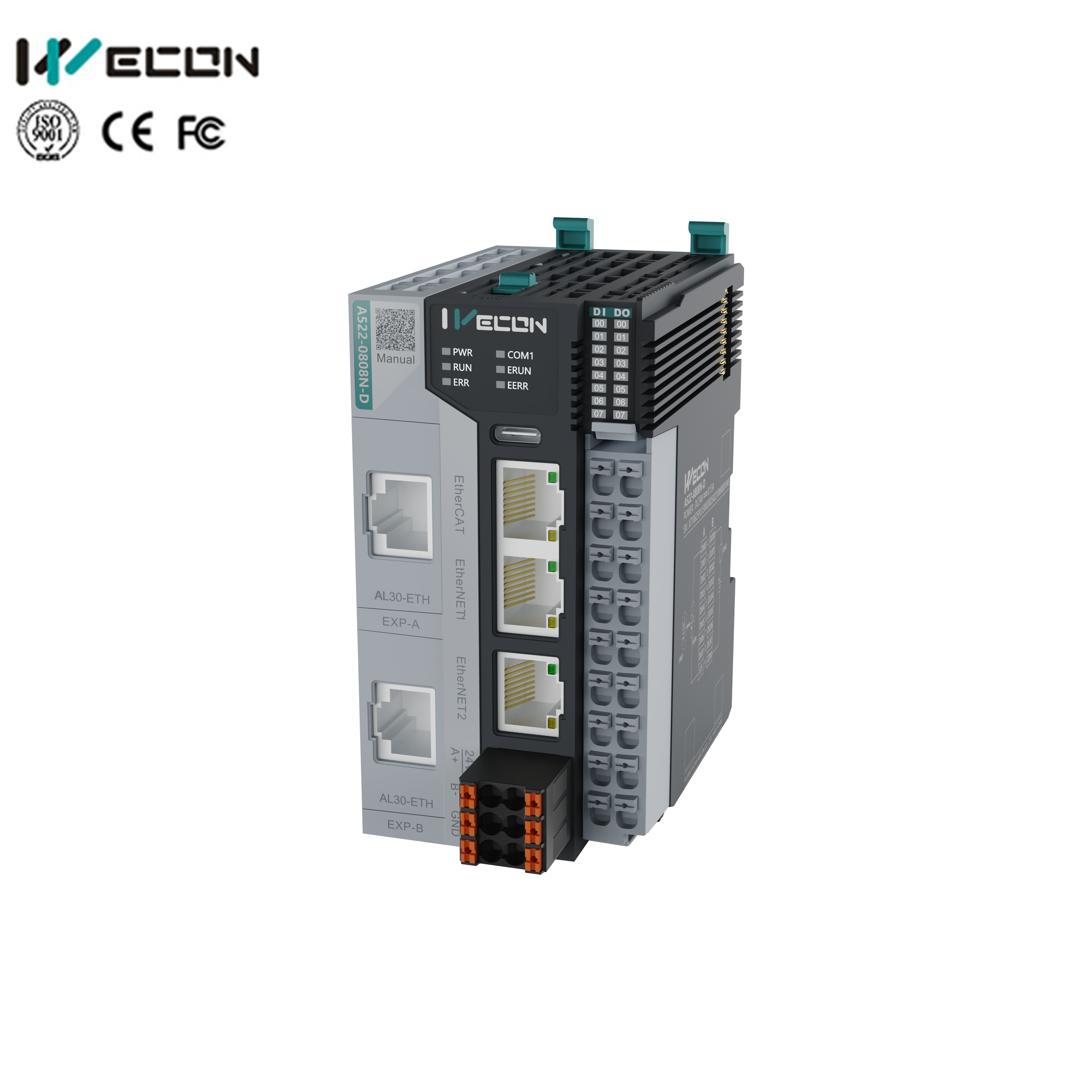

A500 Series

A520 0808N-D

08/08

Transistor

4

YES

6

2

2

YES

DC

2

YES

0

A521 0808N-D

08/08

Transistor

4

YES

6

2

2

YES

DC

2

YES

8

A522 0808N-D

08/08

Transistor

4

YES

6

2

2

YES

DC

2

YES

16

A523 0808N-D

08/08

Transistor

4

YES

6

2

2

YES

DC

2

YES

32

Program Execution

Cycle scan / Interrupt

Programming Language

LD/SFC/ST

Total Instructions

Basic instruction: 29 / Application instruction: 170

Execute Time

Basic instruction 0.01 to 0.02μs

Program Capacity

5MB

      Download / Monitoring

EtherNet

USB Type-C

High Speed Pulse Output

Transistor type 6*200KHz

High Speed Counter

Interrupt

100 channels

Timer Interrupt

100 channels, supporting 0.1ms interrupt

External Input Interrupt

X0 to X7 support both rising and falling edge

High Speed Input Single

4*150KHz

High Speed Input AB Phase

4*150KHz, supports 1/2/4 times frequency

Power-down Save

Configured by software

Storage

Flash

Filter

For all the input terminals

Serial Port

2 channels RS485

Temperature

Working Temperature：0 to 55℃ / Storage Temperature：-20 to 70℃

Humidity

35 to 85%RH（Without condensation）

Shock Resistance

JISC0040 Standard

Anti-interference

IEC61000-4-4 and GB/T 17626.4 standard:

Noise voltage amplitude 1KVP-P, 10 μs pulse width, period 0.3 s, edge time 5ns

Continuous action for 1min.

TF Card

Optional

Ethernet

Gigabit Ethernet

EtherCAT

Support up to 32 servo axis
