On The Output Side:
The LX5V-2DAI-BD supports 2 analog current outputs (4-20mA), while the LX5V-2DAV-BD delivers 2 analog voltage outputs (-10V to 10V). Both output modules provide a resolution of 8uA and comprehensive precision of ±1% full scale.
All modules feature 12-bit digital output, a fast conversion time (one scan cycle), and no insulation between channels. They operate seamlessly with PLC systems through the data register, occupying zero points in the control system. These modules are designed for applications that require reliable and precise analog data handling.
The LX5V-2ADI-BD, LX5V-2ADV-BD, LX5V-2DAI-BD, and LX5V-2DAV-BD are versatile modules offering a range of analog input and output options.

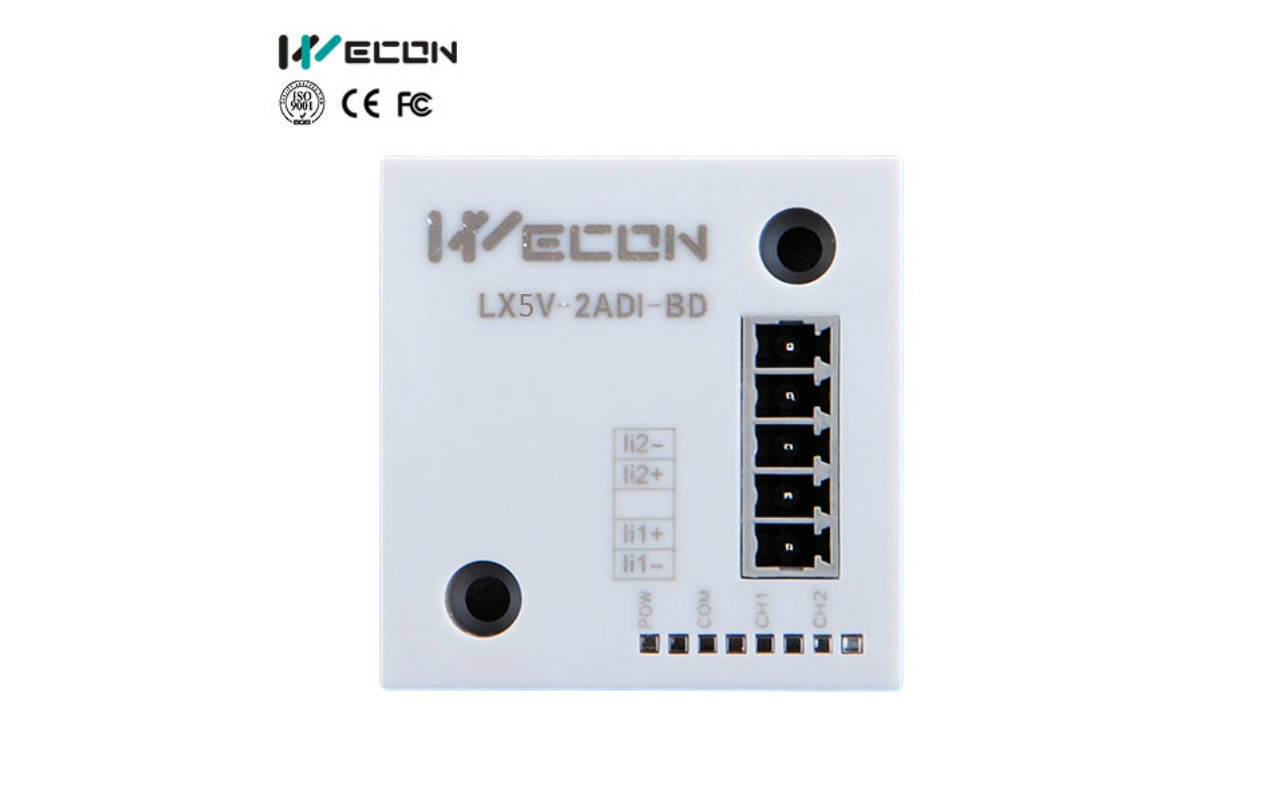

The LX5V-2ADI-BD provides 2 analog current inputs (4-20mA) with a resolution of 8uA and a comprehensive precision of ±0.5% of the full scale.
The LX5V-2ADV-BD offers 2 analog voltage inputs (-10V to 10V) with a 5mV resolution and ±1% full-scale precision.
Only logged in customers who have purchased this product may leave a review.
|
Model |
Channels |
Resolution |
Functionality |
|
LX5V-2ADI-BD |
2 |
12 |
2*Analog Current Input (4-20mA) |
|
LX5V-2ADV-BD |
2 |
12 |
2*Analog Voltage Input(-10v-10v) |
|
LX5V-2DAI-BD |
2 |
12 |
2*Analog Current Output (4-20mA) |
|

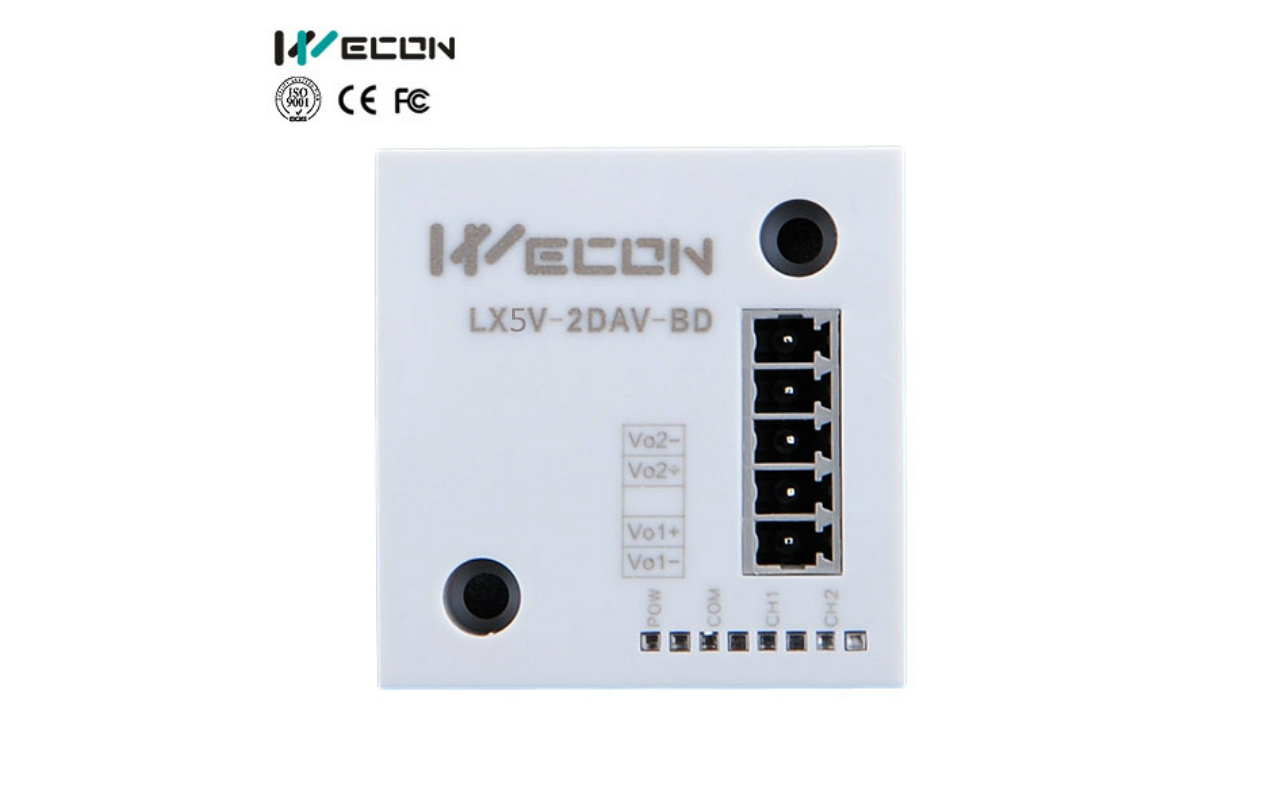

LX5V-2DAV-BD |
2 |
12 |
2*Analog Voltage Output (-10v-10v) |
Specification
|
Item |
LX5V-2ADI-BD |
LX5V-2ADV-BD |
|
Current input |
Voltage input |
|
|
Analog input range |
DC 4mA to 20mA (input resistor 250Ω) , absolute maximum input: -2mA, +60mA |
DC-10V to 10V (input resistor 150KΩ). Note: If the input voltage exceeds ± 15V, it will be damaged. |
|
Digital output |
12-bit binary |
|
|
Resolution |
8uA (4mA to 20mA/2000) |
5mV [10V default range 1/2000] |
|
Comprehensive precision |
±0.5% of full scale (4mA to 20mA: ±0.16 mA) |
± 1% of full scale |
|
A/D conversion time |
One scan cycle (A/D conversion after ladder diagram END instruction is executed, and BD channel map value is updated) |
|
|
Input features |
 |
 |
|
Insulation |
There is no insulation between the channels of the module |
|
|
Points occupied |
0 point (2ADI is not affected by the standard maximum control points of the main PLC because it is operated through the data register) |
|
|
Item |
LX5V-2DAI-BD |
LX5V-2DAV-BD |
|
Current output |
Voltage input |
|
|
Analog output range |
DC 4mA to 20mA (external load resistance ≤ 500 Ω) |
DC -10V to 10V (external load resistance ≥ 500Ω) |
|
Digital output |
12-bit binary |
|
|
Resolution |
8uA (4mA to 20mA/2000) |
5mV [10V default range 1/2000] |
|
Comprehensive precision |
±1% of full scale (4mA to 20mA: ±0.16 mA) |
± 1% of full scale |
|
D/A conversion time |
One scan cycle (D/A conversion after ladder diagram END instruction is executed, and BD channel output value is updated) |
|
|
Output features |
External load is 250Ω. 0 to 2000 was converted to 4mA to 20mA.
|
 |
|
Insulation |
There is no insulation between the channels of the module |
|
|
Points occupied |
0 point (2DA is not affected by the standard maximum control points of the main PLC because it is operated through the data register) |
|
