* Storage capacity: 128MB Flash, 128MB RAM
* 3 Ethernet ports; Serial port COM1: RS232, RS422/RS485
* COM2: RS485;COM3: RS485;2 relay outputs, 2 optocoupler isolated inputs
* Built-in WIFI module (H-WF), Built-in 4G (Global) module (H-AG)
* Special features: Supports Lua script, PLC/WVPN pass-through configuration import and export
Only logged in customers who have purchased this product may leave a review.
|
Model |
COM |
Ethernet |
Monitoring |
Alarm |
Data Record |
Validity |
WIFI/4G |
WVPN Pass-through |
Script |
|
V-BOX H-00 |
4 in 3 |
3 |
300 |
200 |
50 |
90 days / 1 millions |
N/A |
N/A |
Yes |
|
V-BOX H-4G |
4 in 3 |
3 |
500 |
300 |
100 |
180 days / 1 millions |
4G |
Yes |
Yes |
|
V-BOX H-AG (global) |
4 in 3 |
3 |
600 |
300 |
100 |
180 days / 1 millions |
4G |
Yes |
Yes |
|
V-BOX H-SG |
4 in 3 |
3 |
500 |
300 |
100 |
180 days / 1 millions |
4G+GPS |
Yes |
Yes |
|
V-BOX H-WF |
4 in 3 |
3 |
300 |
200 |
50 |
90 days / 1 millions |
WIFI |
Yes |
Yes |
|
Items |
V-BOX H-00 |
V-BOX H-4G |
V-BOX H-AG |
V-BOX H-WF |
|
|
OS |
Linux |
||||
|
CPU |
Quadcore High Performance CPU |
||||
|
Flash |
128MB |
||||
|
RAM |
DDRIII 128MB |
||||
|
SD Card |
N/A |
||||
|
MICRO USB |
USB Host/Device：USB OTG Switch |
||||
|
Serial Port |
COM1：RS232, RS485/RS422 (2 in 1) |
||||
|
COM2：RS485 COM3：RS485 |
|||||
|
Digital I / O |
2 inputs with optocoupler isolation; 2 relay outputs |
||||
|
Ethernet Port |
3 Ethernet ports (2*LAN+1*WAN) |
||||
|
WIFI Module |
N/A |
N/A |
N/A |
YES |
|
|
Power Supply |
24V DC (12~28V DC) |
||||
|
Power Consumption |
<10W |
||||
|
Enclosure |
PC+ABS |
||||
|

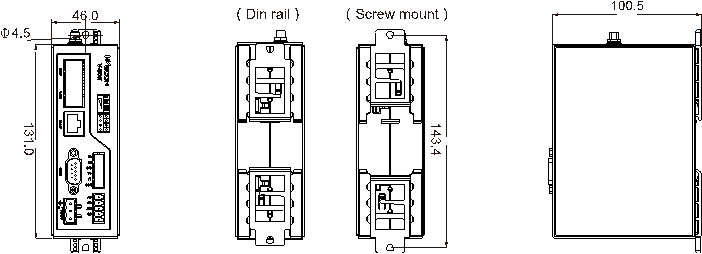

Dimension (W*H*D) |
131.0mm*100.5mm*46.0mm |
||||
|
Weight (KG) |
0.3 |
||||
|
Vibration Resistance |
IEC61131-2 Standard |
||||
|
Storage Temperature |
-20°C~70°C |
||||
|
Working Temperature |
-10°C~60°C |
||||
|
Relative Humidity |
10~85% RH (Non-condensing) |
||||
|
CE Certification |
CE Marked |
||||
|
FCC Certification |
FCC Class A |
||||
|
HTTP Interface |
Yes |
||||
|
Remote Update |
Yes |
||||
|
Configuration Backup |
Yes |
||||
|
Off-line Transmission |
Yes |
||||
|
GPS |
N/A |
LBS / GPS |
LBS |
N/A |
|
