BD Module: LX3V-2TC-BD

Description

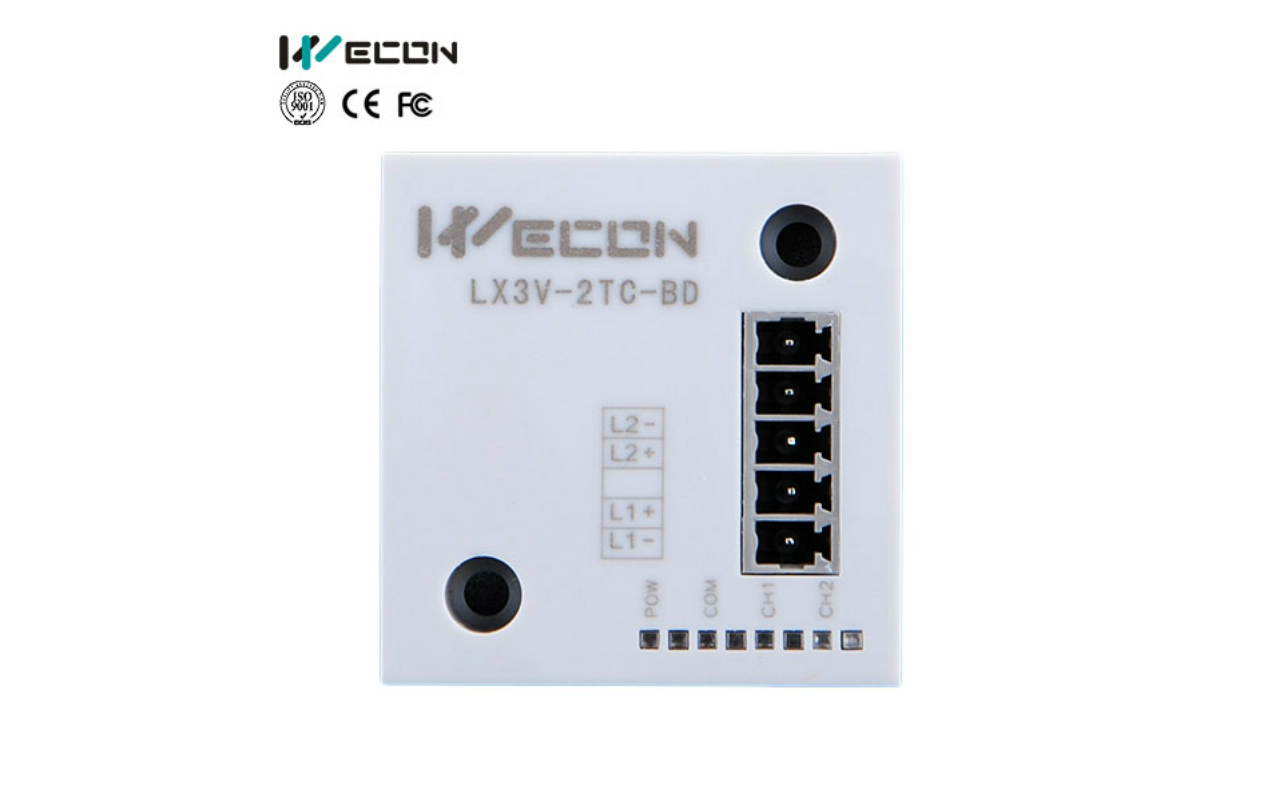

BD Module: LX3V-2TC-BD – 2 Channels Thermocouple Input Module

The LX3V-2TC-BD is a high-performance 2-channel thermocouple input module designed to offer precise and reliable temperature measurement for industrial automation systems. It is ideal for applications that require accurate temperature data from thermocouples of type K or J.

Key Features:

Dual Channel Input: Supports two independent thermocouple inputs (Type K and Type J) for versatile temperature monitoring.
Input Range:
Type K: -100°C to 1200°C
Type J: -100°C to 600°C
Accuracy:
Type K: ±0.4°C
Type J: ±0.3°C
Overall Accuracy: ±0.5%
Digital Output:
Type K: -13000
Type J: -7000
High Resolution: 12-bit total resolution for precise temperature readings.
Conversion Rate: Fast 700ms conversion time per channel for quick response.
Power Supply:
Analog circuitry: DC 24V ±10%, 70mA
Digital circuitry: DC 5V, 90mA (from PLC internal power supply)
Data Handling: Temperature data is buffered for smooth and reliable data retrieval.
This module provides the perfect solution for integrating thermocouple-based temperature sensing into your PLC-controlled system, ensuring both high accuracy and reliable performance across a broad temperature range.
