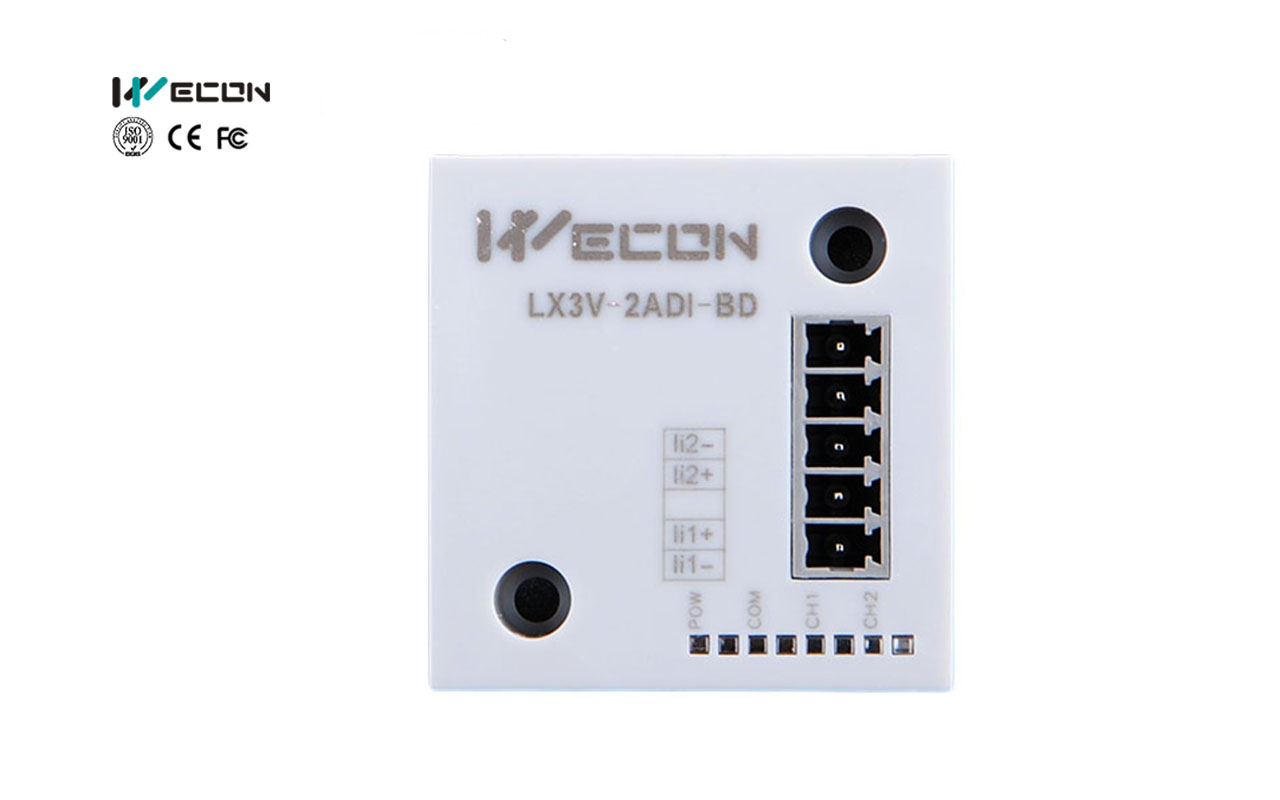

LX3V-2ADI-BD:
LX3V-2ADV-BD:
LX3V-2DAI-BD:
LX3V-2DAV-BD:
Key Features:
Analog Inputs & Outputs: Supports both current (4-20mA) and voltage (-10V to 10V) signals.
High Resolution & Accuracy: 12-bit digital output with resolutions of 8uA for current and 5mV for voltage.
Precision: ±1% of full scale for input and output signals.
Fast Conversion Time: Conversion happens within one PLC scanning cycle, ensuring quick data processing.
Easy Integration: Powered by the PLC host with no insulation required between PLC channels, simplifying system setup.
These modules are perfect for various industrial applications, offering versatility and reliability for both input and output signal processing in automation systems.
The LX3V-2ADI-BD, LX3V-2ADV-BD, LX3V-2DAI-BD, and LX3V-2DAV-BD modules are designed for high-performance analog input and output applications, offering flexible signal measurement and control for industrial systems. These modules provide solutions for both analog current and voltage inputs, as well as outputs, with high resolution and accuracy for reliable data processing.
Only logged in customers who have purchased this product may leave a review.
| Item | LX3V-2ADI-BD | LX3V-2ADV-BD |
| Current input | Voltage input | |
| DC 4-20mA (Input resistance:250Ω) | DC -10 ~ 10V (Input resistance:150KΩ) | |
| Digital output | 12 bits binary | |
| Resolution | 8uA (4mA-20mA/2000) | 5mV (10 : 1/2000) |
| Precision | ±1% (4-20mA: ± 0.16mA) | ±1% |
| AD conversion time | One PLC scanning cycle | |
| Characteristic |
|
 |
| Insulation | No insulation in each PLC channel | |
| Occupied points | None | |
| item | LX3V-2DAI-BD | LX3V-2DAV-BD | |
| Current output | Voltage output | ||
| Output range | DC4~20mA (Load resistance should be less than 500Ω) | DC-10V~10V (the external load resistance is no less than 2KΩ) | |
| Digital output | 12 bits binary | ||
| Resolution | 8uA[4mA-20mA/2000] | 5mV[10V default scope 1/2000] | |
| Precision | ±1% | Full scale ±1% | |
| AD conversion time | One PLC scanning cycle | 1 scan time（The analog digital conversion is completed by the END order） | |
| Characteristic |  |
 |
|
| Insulation | No insulation in each PLC channel | ||
| Occupied points | Zero point | ||
